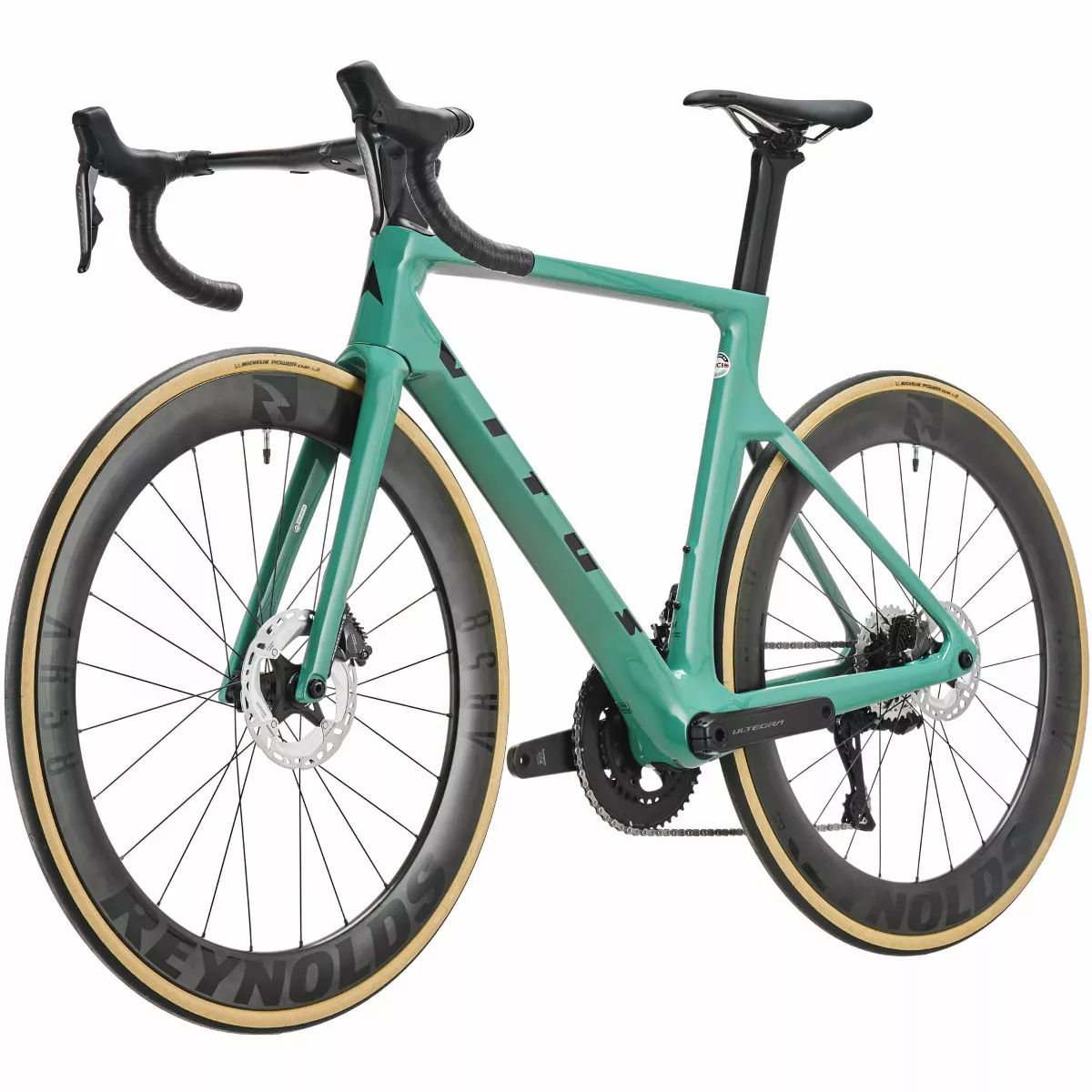

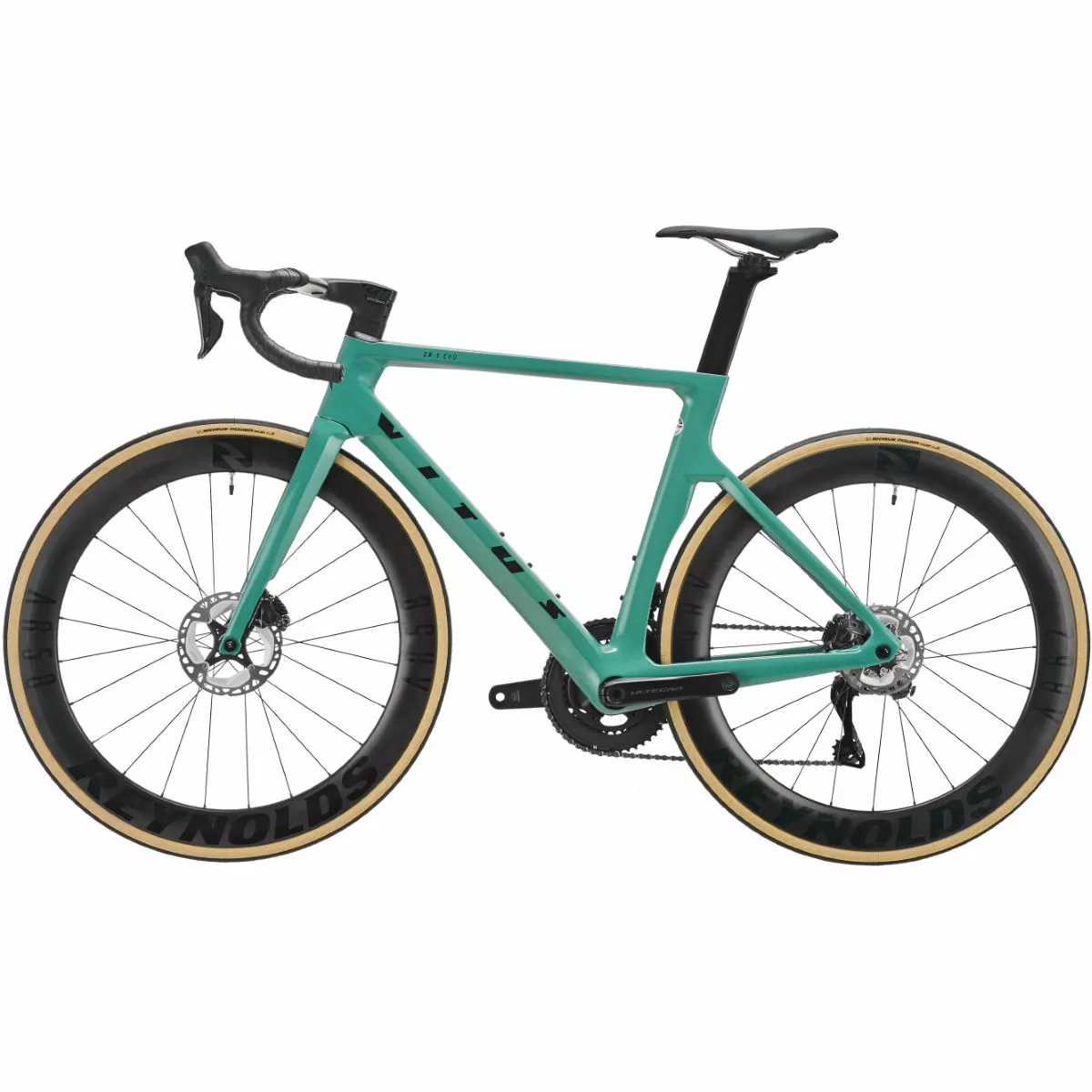

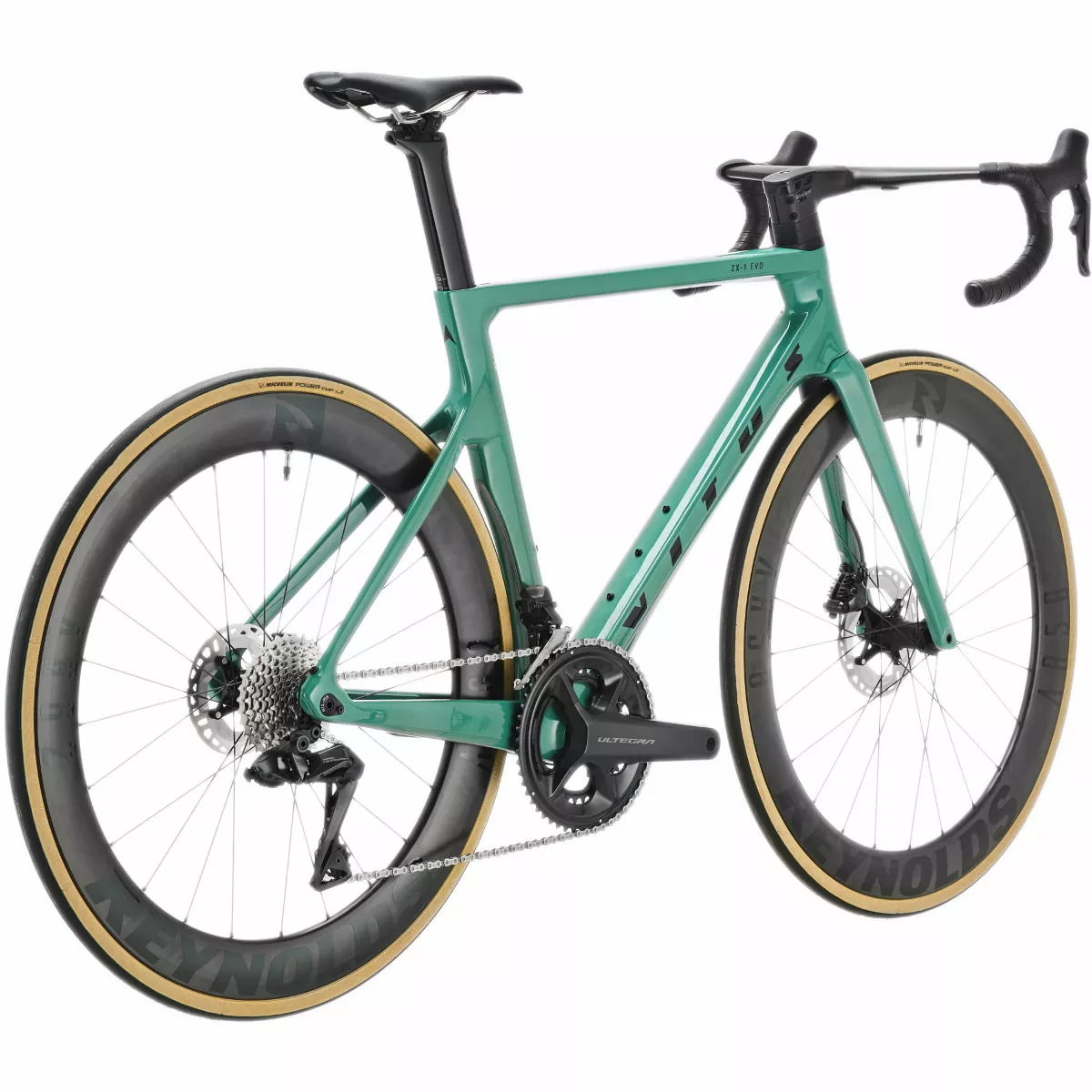

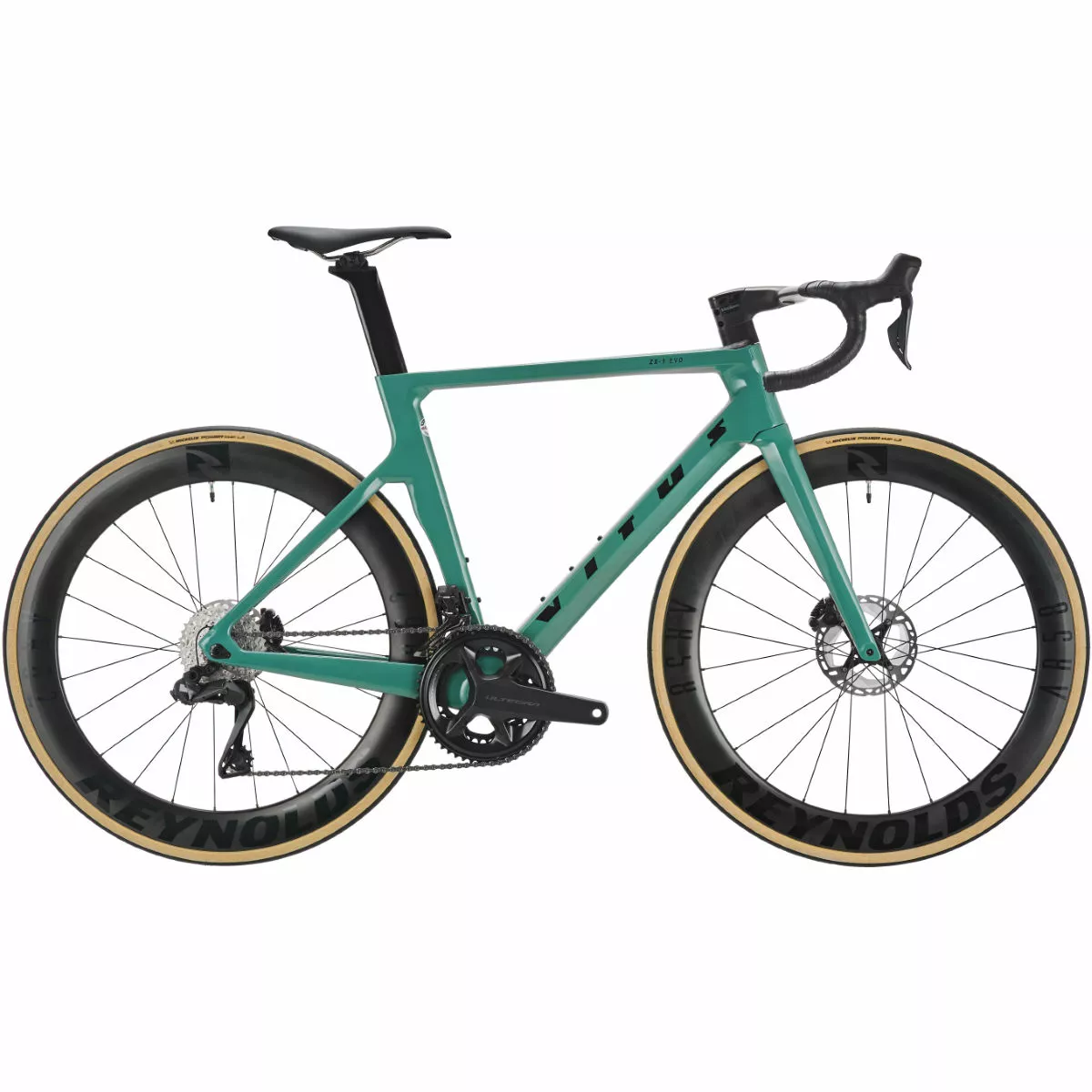

Vitus ZX-1 EVO Ultegra Di2 Road Bike

Advanced Aero Road Bike Frame

Vitus has done the testing and know that the EVO exhibits up to 45% less drag than the previous model. But that means nothing until you unleash it outside and feel it for yourself. In the world of aero bikes, amongst all the jargon and data, it’s easy to lose sight of what really matters. That to feel fast is to be fast, and you can’t feel fast in a wind tunnel.

Fast Accelerating Carbon Fibre Frameset

The pleasure of speed only exists in the real world. Out there on the road. The sensation of putting power through your pedals and feeling the bike surge underneath you. And the faster you go, the easier it becomes. That’s where the ZX-1 EVO excels. That’s the bike working with you as the road snakes and the wind changes. That’s aero.

Aero Riding Position

The performance geometry slots the rider into a naturally aerodynamic position, so whether racing flat-out, sprinting for road signs or charging on the front of the chaingang, the EVO gathers momentum quickly and holds speed with ease. Vitus has made this bike fast. They know it rides fast. The rest is up to you.

Key Features:

Race-Fit geometry SL UD Carbon aero frame and fork with integrated seat clamp
Full internal cable routing
Shimano Ultegra R8100 Di2 groupset
Reynolds AR58/62 DB Carbon wheelset
Vision Metron 5D ACR Carbon cockpit

Features:

Frame: ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Internal Cable Routing, 12mm x 142mm axle, Flat Mount
Fork: ZX-1 EVO Carbon, SL UD Carbon, UCI Approved, Tapered Steerer, 100 x 12mm, Flat Mount, Size Specific Offset
Headset: FSA/Vitus ACR, Sealed Bearings, 1.5″ 36×45 degrees (FSA No.55ACR), Vitus/FSA Headset Cover

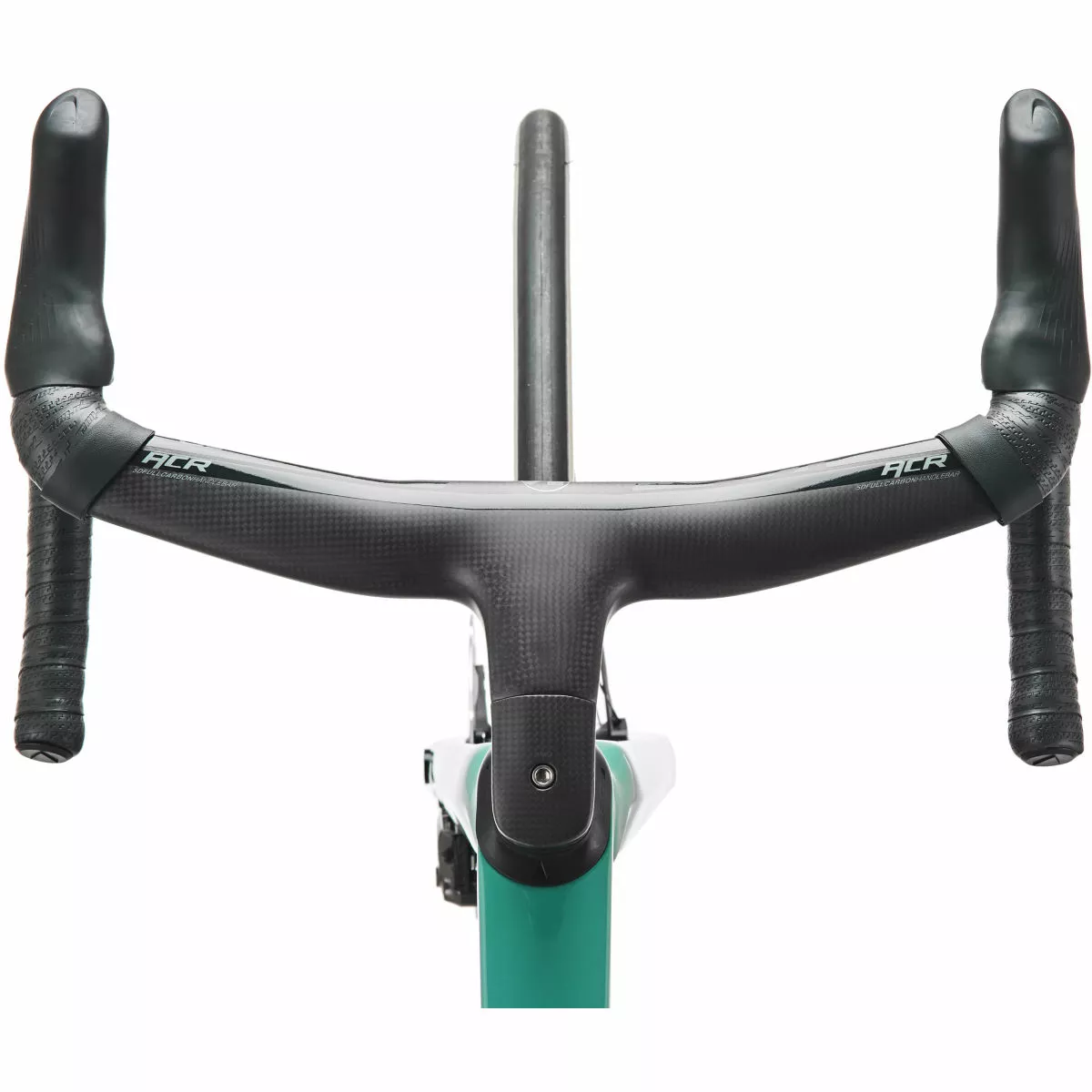

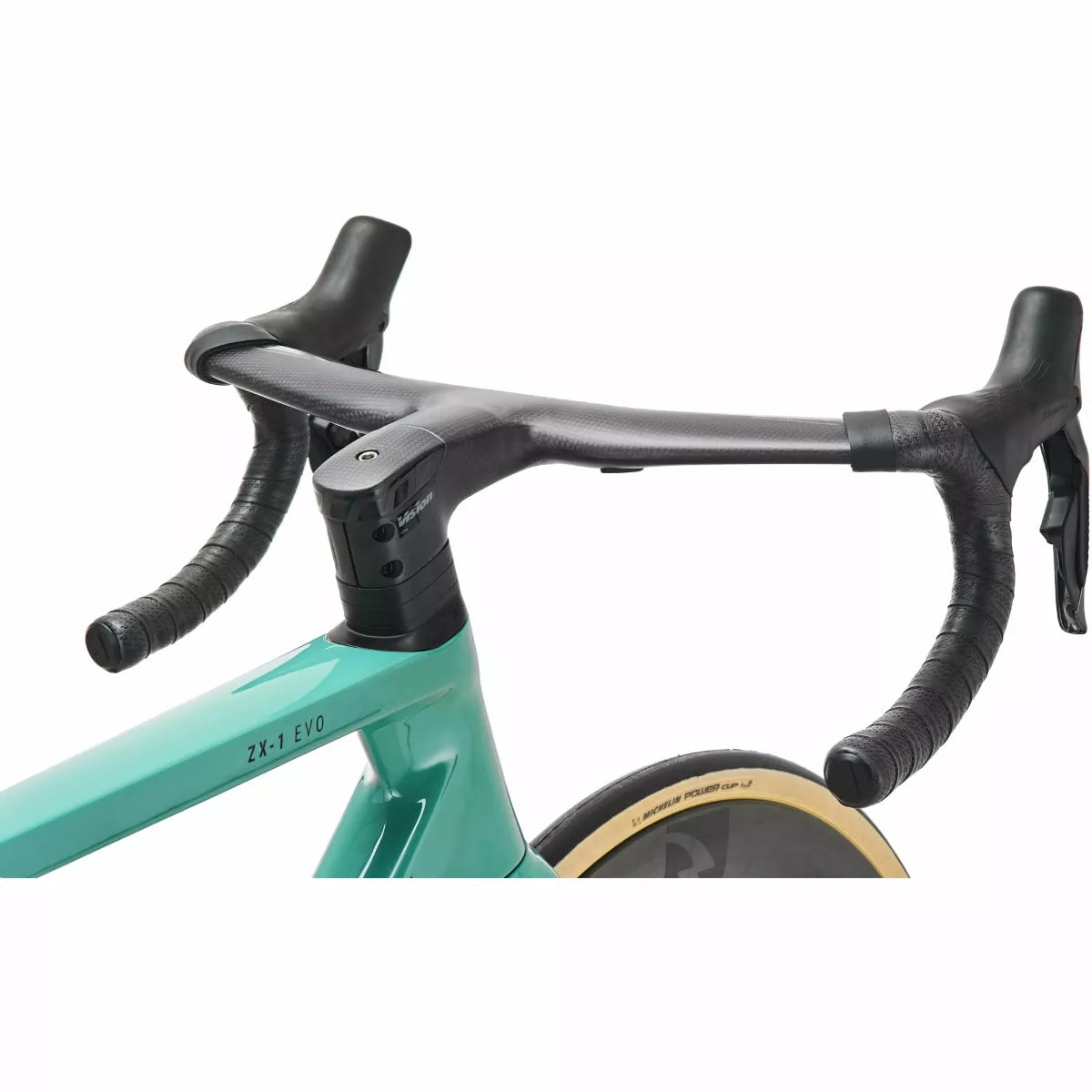

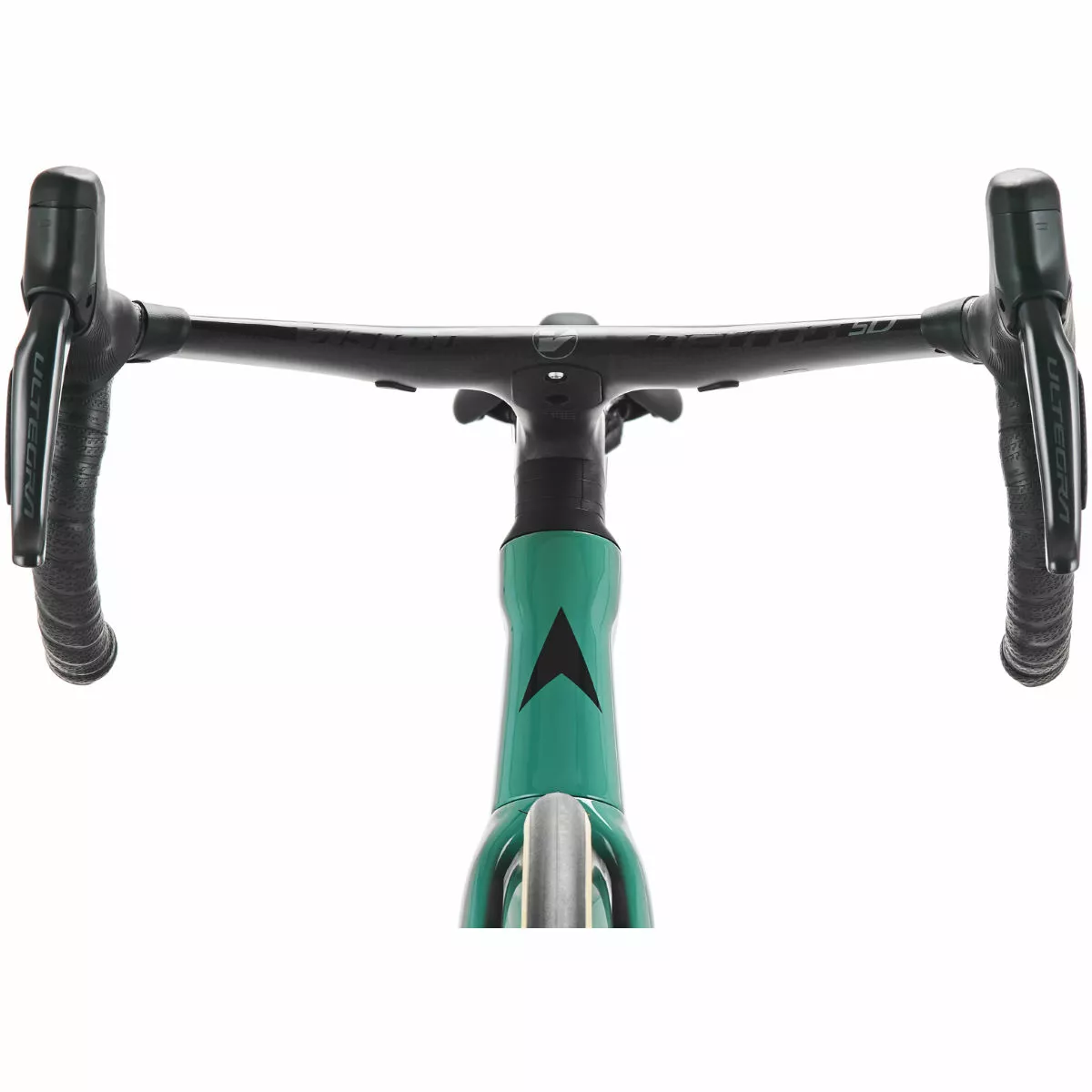

Handlebar: Vision Metron 5D ACR Integrated Bar/Stem Combo, UD Carbon, XS:400mm S:400mm M:420mm L:420mm XL:420mm XXL:420mm
Stem: Vision Metron 5D Acr Integrated Bar/Stem Combo, 125mm drop, – 6 degrees, XS:100mm, S:100mm, M:110mm, L:110mm, XL:120mm, XXL:120mm
Grip(Tape): Vitus Super Grip, Anti Slip
Wheelset: Reynolds AR58/AR62 DB Carbon Carbon Clincher
Front Rim: Reynolds AR58, Carbon, TubelessReady, Disc Brake, Rim Depth: 58mm, Inner Rim Width: 19mm, Outer Rim Width: 28mm
Rear Rim: Reynolds AR62, Carbon, TubelessReady, Disc Brake, Rim Depth: 62mm, Inner Rim Width: 21mm, Outer Rim Width: 30mm
Front Hub: Reynolds GW TR3 100 x 12mm, Centre Lock
Rear Hub: Reynolds GW TR3 142 x 12mm, Centre Lock, HG Freehub
Front Tyre: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready
Rear Tyre: Michelin Power Cup Classic TS TLR, 700c x 25c, Tubeless Ready
Chain: Shimano M8100 CN-M8100, 12-Speed

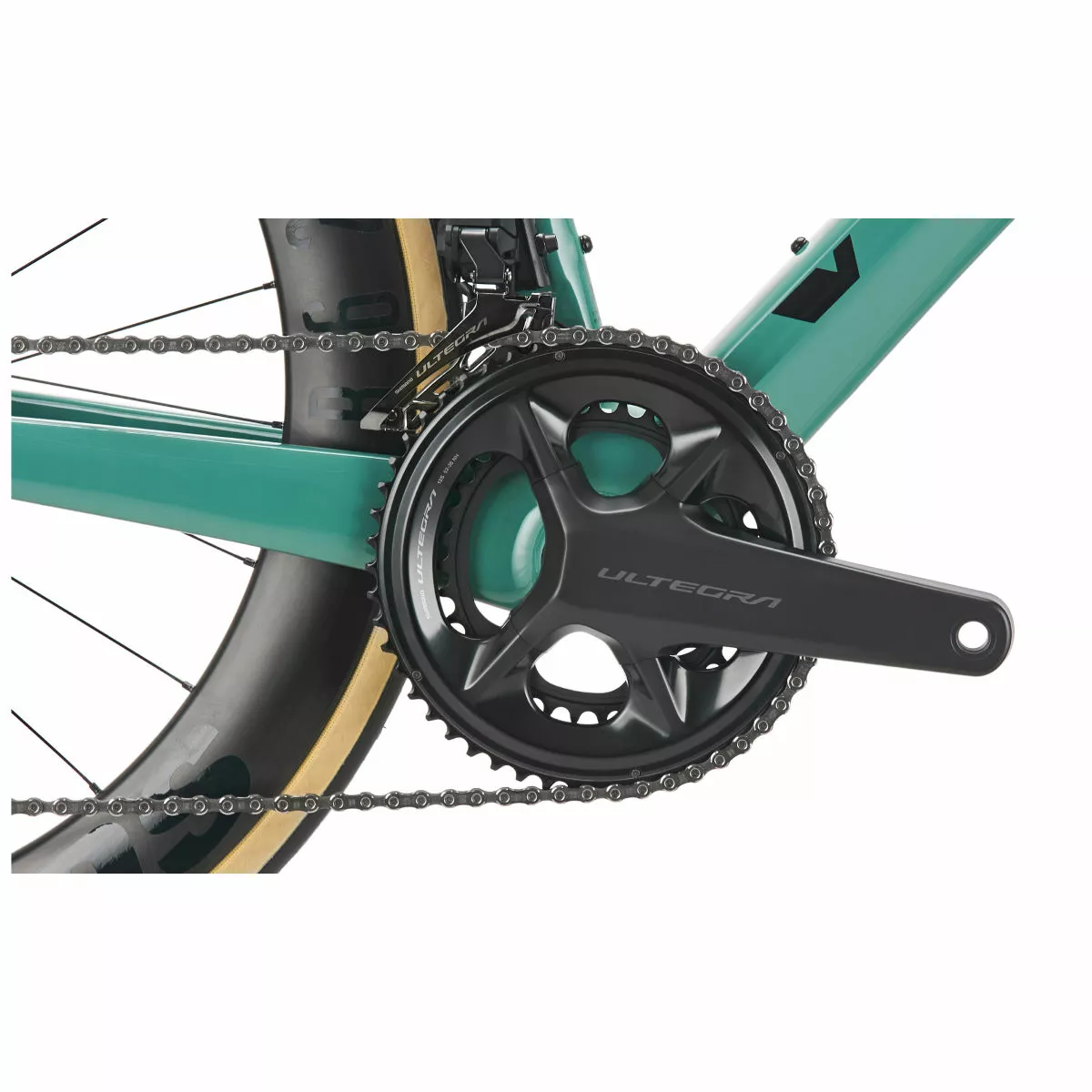

Crankset: Shimano Ultegra R8100 FC-R8100, 52/36T, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL: 175mm
Bottom Bracket: TRiPEAK 386-24 BB386EVO for 24mm axle
Front Brake: Shimano Ultegra R8170 Disc, Hydraulic Disc, Flat Mount
Rear Brake: Shimano Ultegra R8170 Disc, Hydraulic Disc, Flat Mount
Rotors: Shimano MT800, Front:160mm, Rear:140mm
Front Derailleur: Shimano Ultegra R8150, 2×12 Speed, Braze-On
Rear Derailleur: Shimano Ultegra R8150 RD-R8150-GS, 12 Speed, Shadow

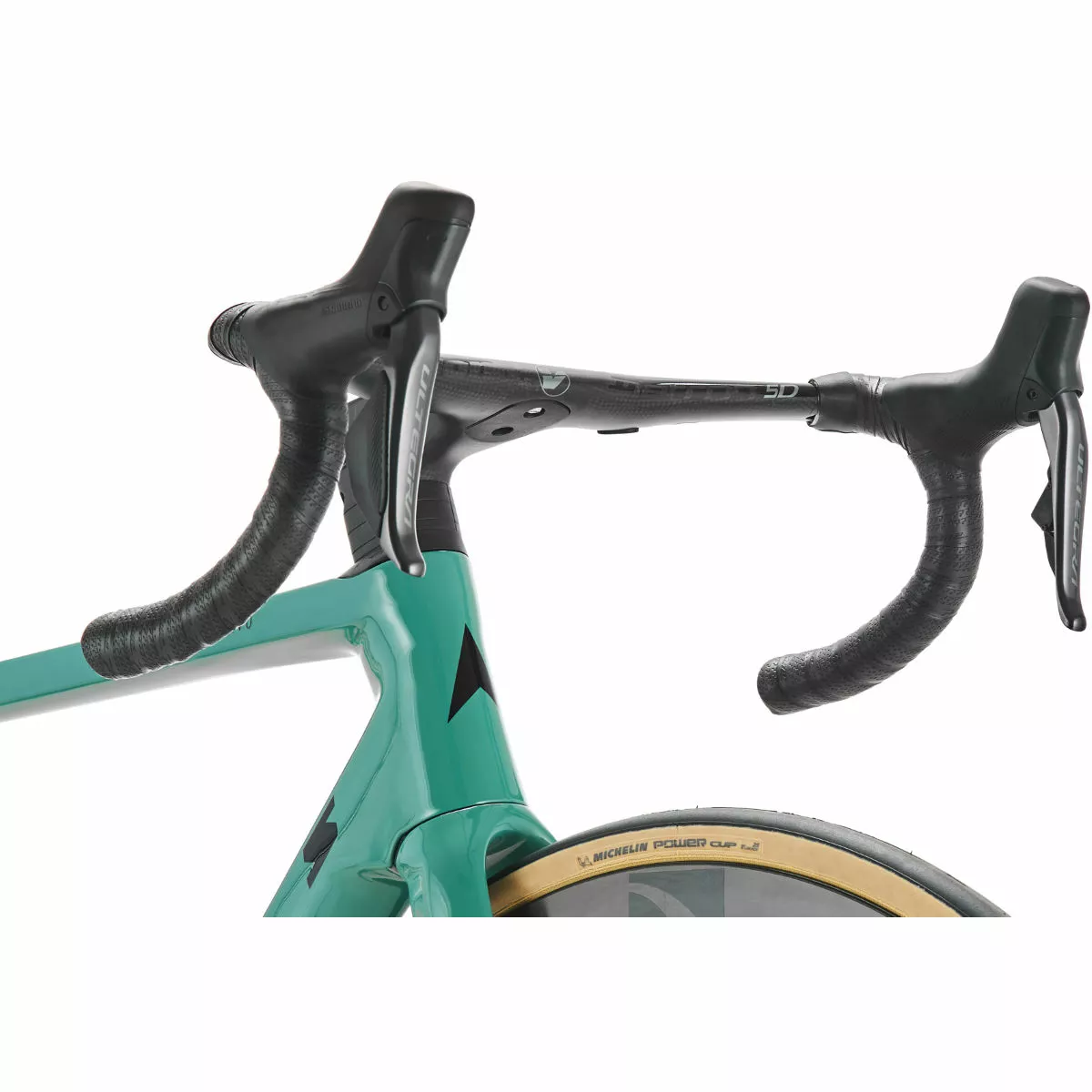

Left Shifter: Shimano Ultegra R8170, 2×12 Speed
Right Shifter: Shimano Ultegra R8170, 12 Speed
Freewheel: Shimano Ultegra R8100, 11-34T, 12 Speed

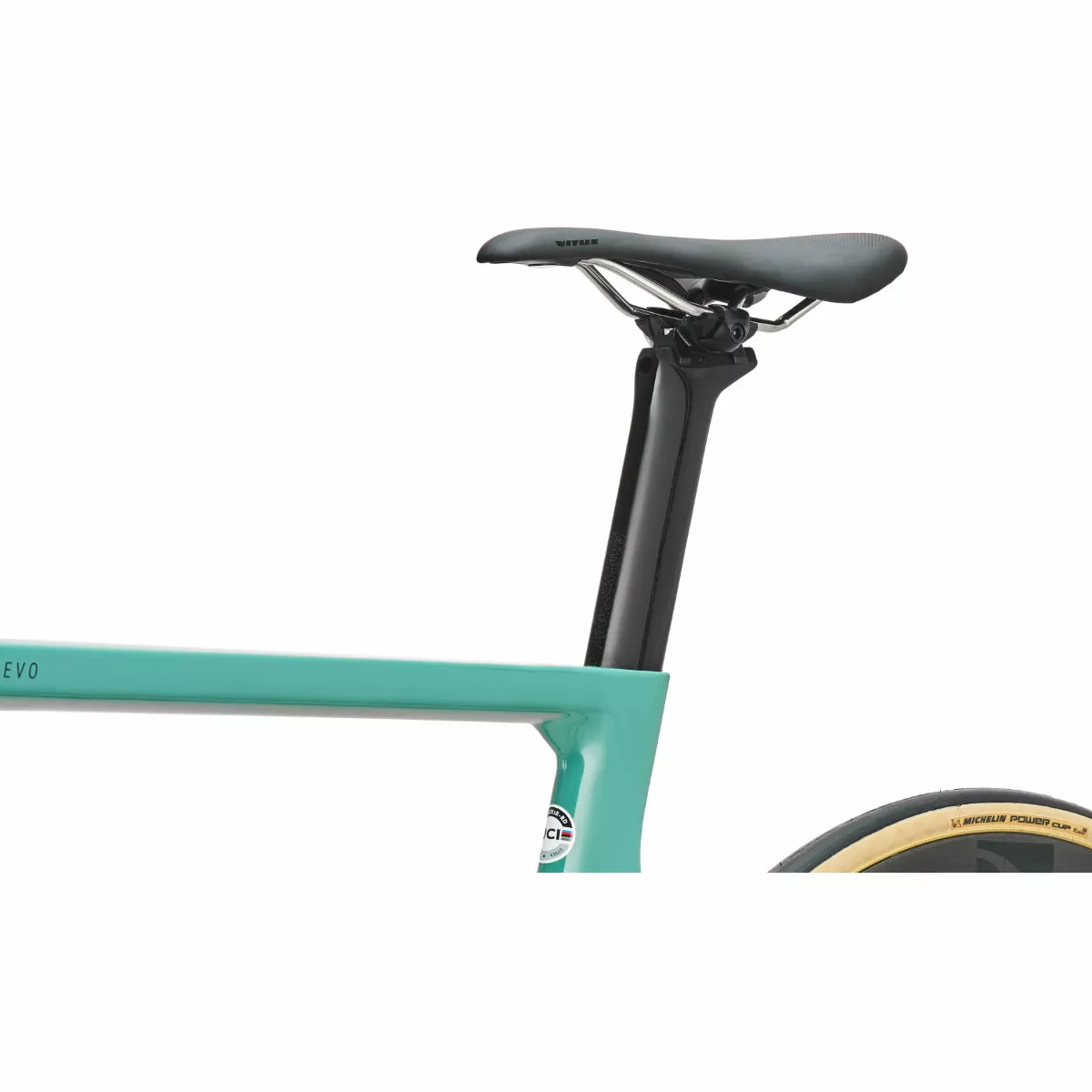

Saddle: Vitus Race Performance, CRN-Ti Rail, Pressure Relief Channel
Seat Post: ZX-1 EVO Aero, +20mm/-2mm Offset, XS/S: 300mm M/L: 350mm XL/XXL: 400mm
Seat Screw: ZX-1 EVO Integrated, Internal Wedge System
Weight: Medium: 8.6kg

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Technologies:

Full Monocoque Frame: The ZX-1 EVO features a true monocoque frame, manufactured as a single piece. Comfort and performance go hand-in-hand, while eliminating any joins creates greater strength and results in a light weight, eye catching frame. Less aerodynamic drag, for ultimate speed when out on the open road

Race-Fit Geometry: Race-Fit geometry is reserved for Vitus’ performance led race bikes. The aim is to put the rider in the most advantageous position possible, maximising power output and aerodynamic positioning, whilst maintaining comfort

Dual Fork Design: Vitus has introduced frame size specific fork geometry maintaining fit and handling characteristics across the full size curve. By adjusting the rake on the smaller sizes this ensures handling isn’t compromised, whilst at the same time giving riders the same toe overlap versus the bigger frame sizes

Tyre Clearance: Performance shouldn’t come about at the expense of practicality, that’s why the ZX-1 EVO brings 700c x 30 tyre clearance across all sizes. For added comfort and control, without compromising on speed

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
