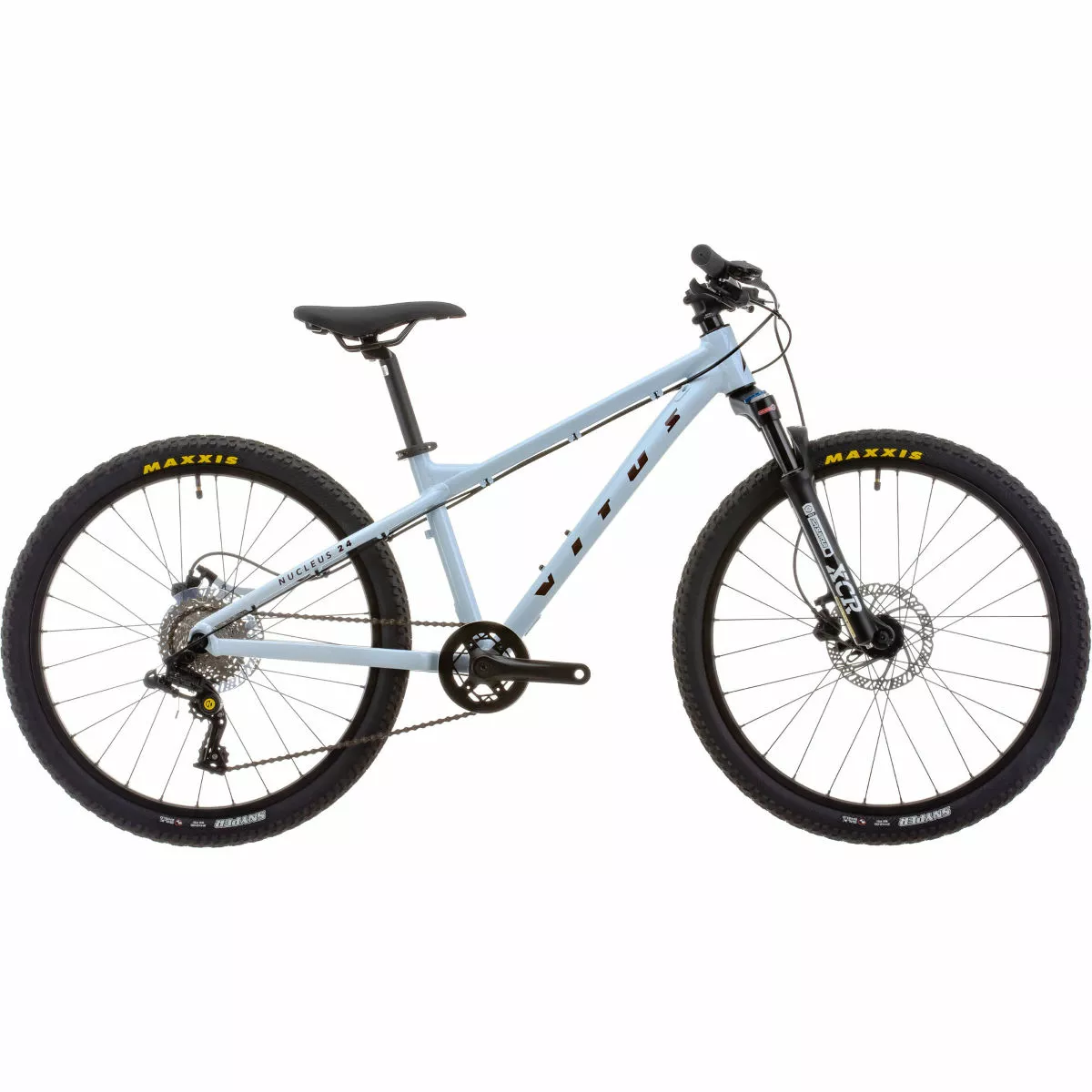

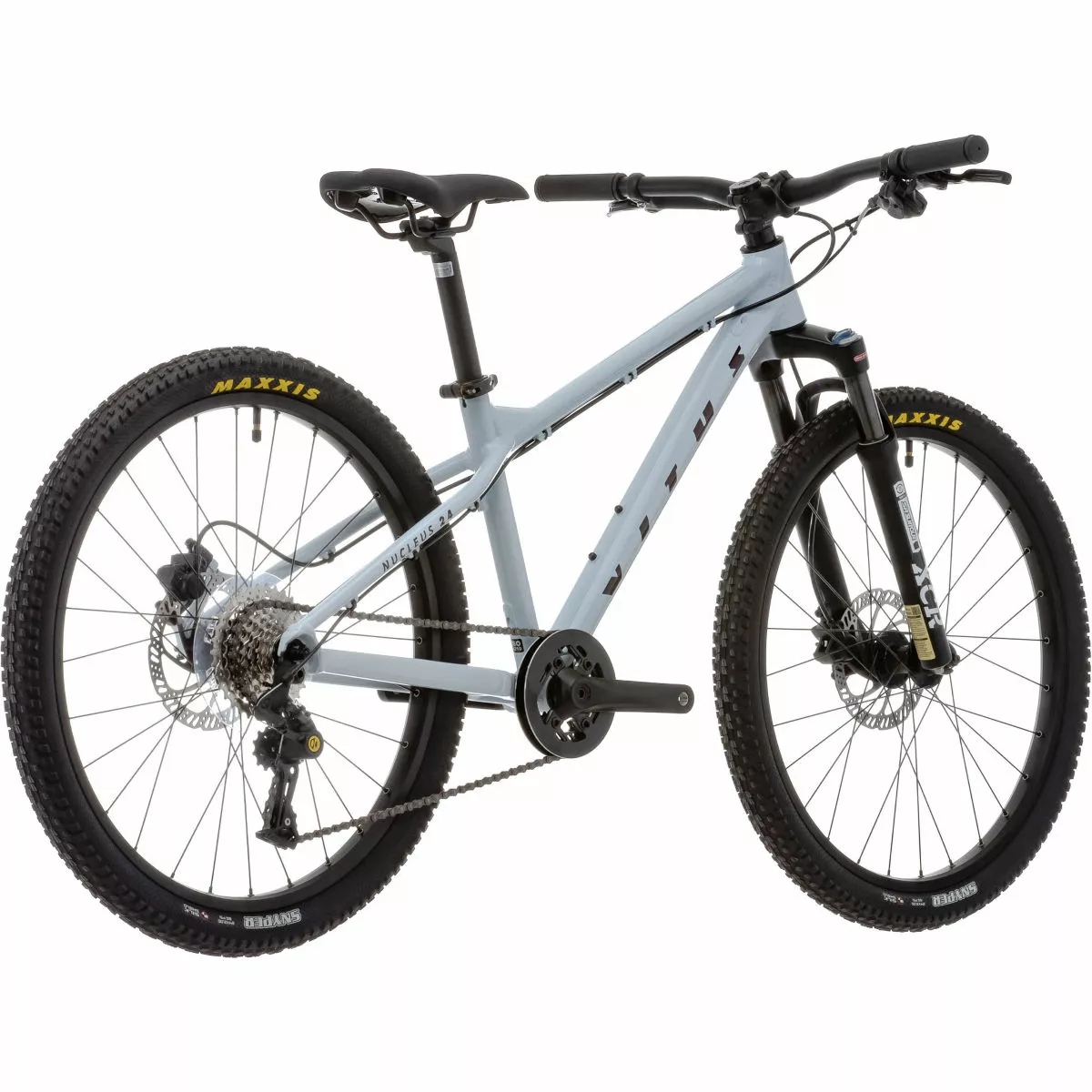

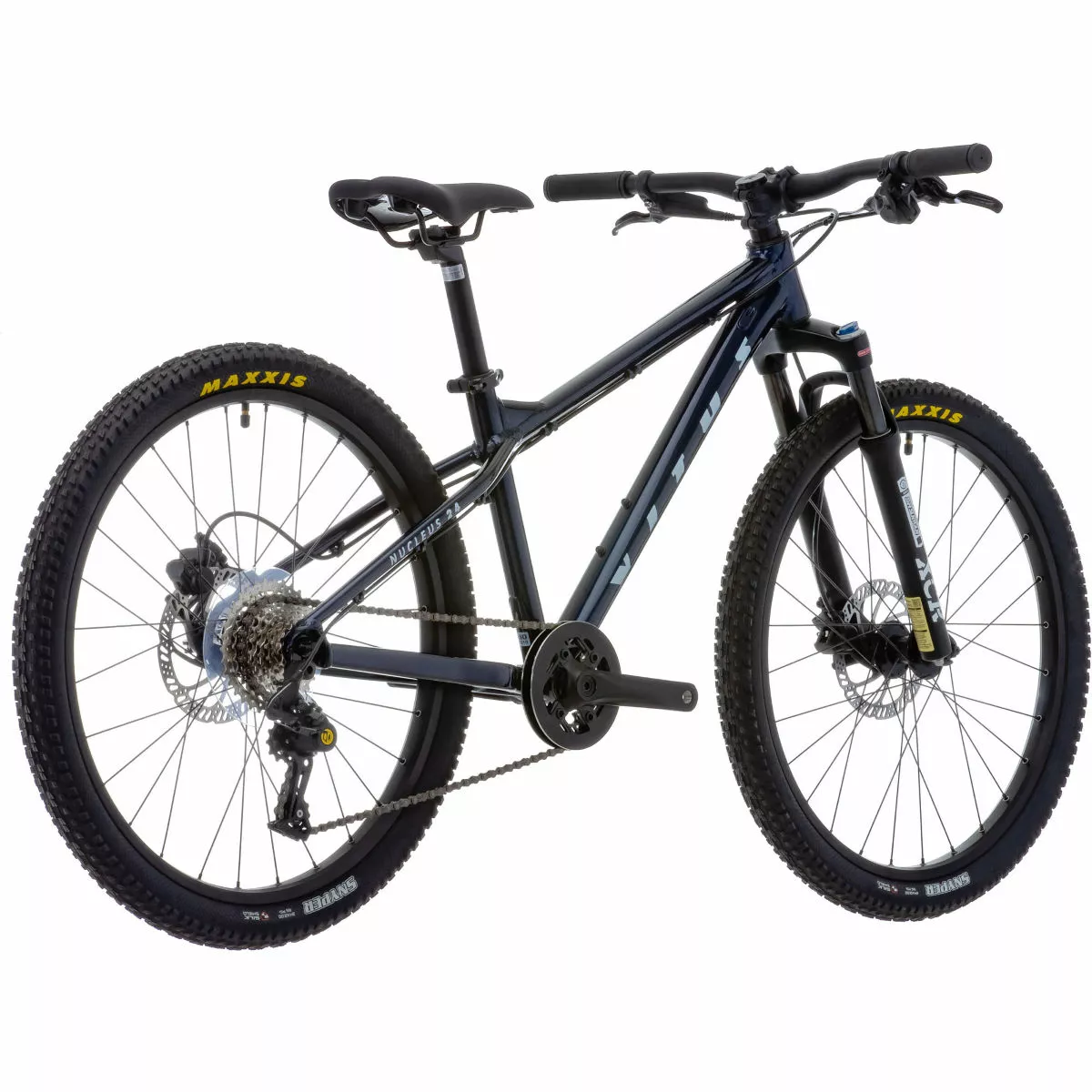

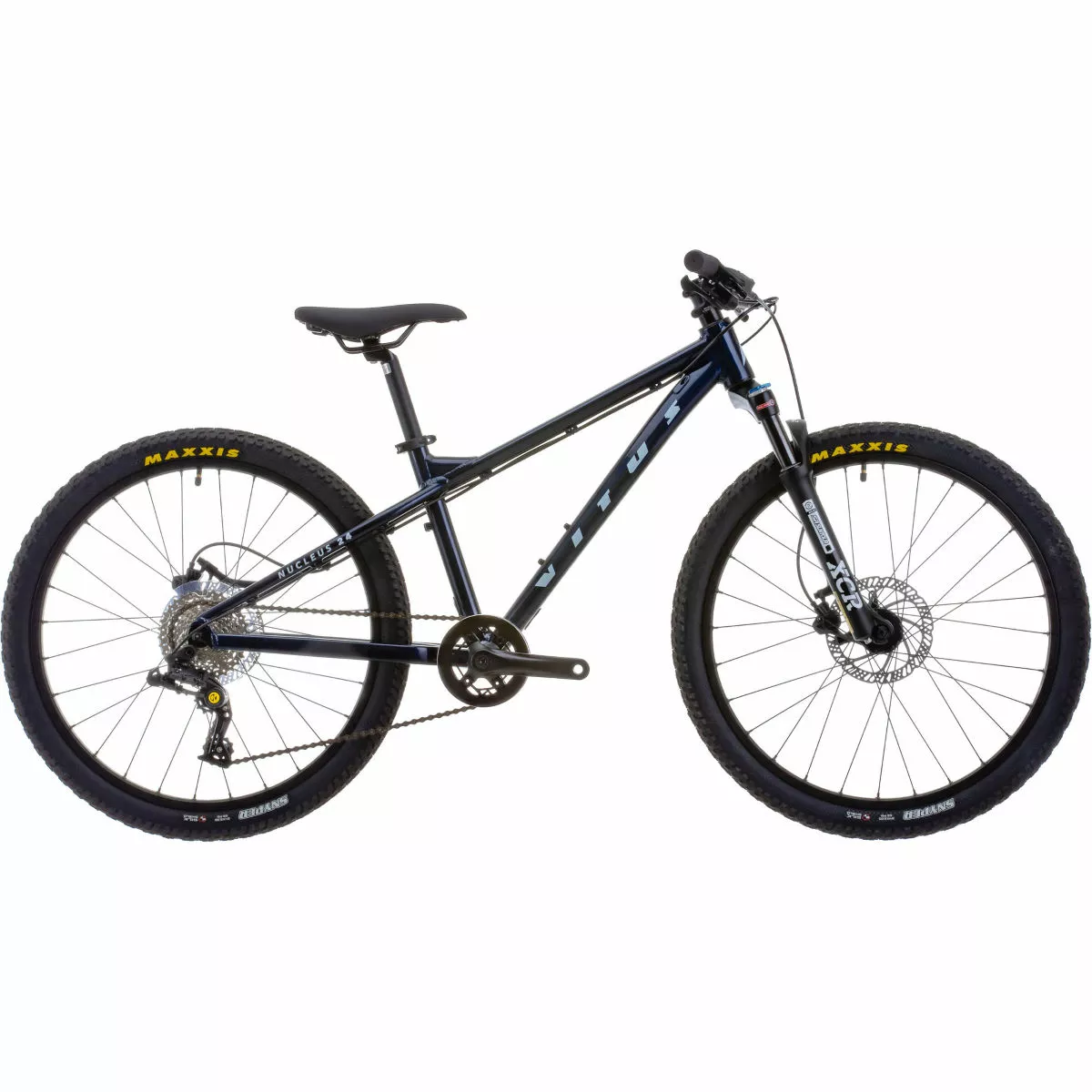

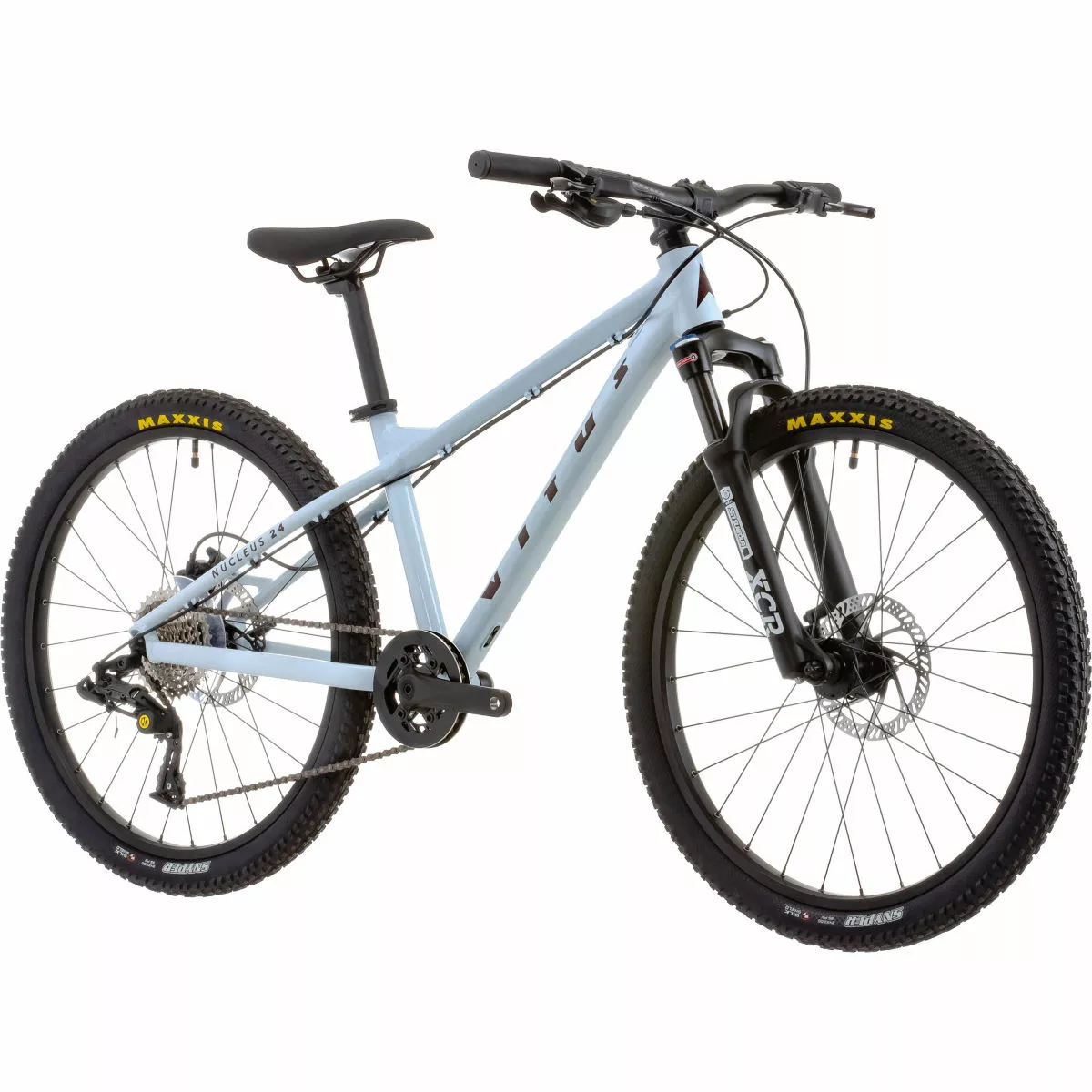

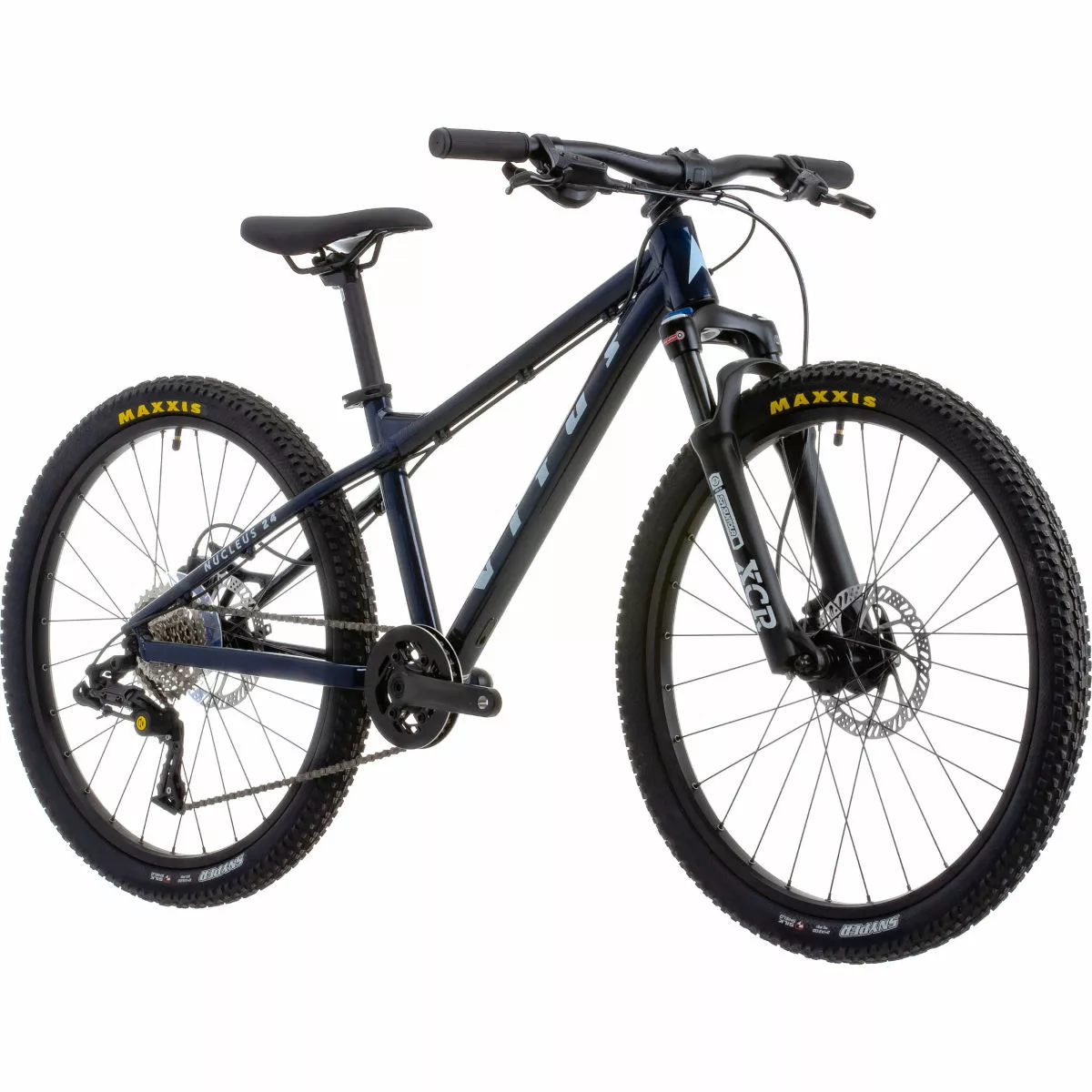

Vitus Nucleus 24 Youth Hardtail Bike

The Nucleus 24 Youth features a durable and lightweight alloy frame that incorporates modern low, long and slack trail-riding geometry. It’s equipped with a Box Four 1×8-Speed groupset, 60mm-travel Suntour suspension and powerful hydraulic disc brakes, giving it a wide-gear range for superb pedalling efficiency and reliable all-weather braking power.

Strong and Lightweight Youth Hardtail Mountain Bike

The new kid on the block. Influenced greatly by all the good stuff Vitus learned when creating the award-winning adult Nucleus, this youth platform brings all the same trail riding performance and hardtail fun to the next generation.

At its core, the lightweight aluminium frame utilises the familiar Vitus progressive geometry that promotes stability, control and confidence – everything you want in a bike for a smaller rider.

Helping your youngster cruise the trails and smooth out the bumps is a quality Suntour XCR air suspension fork that’s adjustable to suit their weight and can be quickly locked out for riding on harder surfaces. Hydraulic disc brakes with adjustable levers ensure that powerful stopping performance can be achieved by small hands and the 2.0” Maxxis tyres deliver heaps of traction, so there will be no stopping them whatever the weather. A single front chainring keeps the maintenance low and the smooth Box Four gears include a clutch derailleur that stops the chain from bouncing or coming off. For them, that means a smoother, quieter ride and for you, that means no more greasy fingers at the trailside.

Staying true to the Nucleus vibe and personality, this Kids platform delivers everything that a young rider needs to experience the buzz, the thrill and the fun of riding a mountain bike. Ride with them, shred the trails with them and watch them grow in confidence, empowered by the capability that comes as standard with the Nucleus heritage.

Key Features:

Junior Hardtail: Based on the award-winning adult Nucleus hardtail
Frame Material: 6061-T6 Aluminium
Wheel Size: 24″
Intended Use: Kids
A progressive geometry that’s ideal for a first experience of trail riding
Lightweight 6061 T-6 aluminium frame
SR Suntour air sprung suspension fork with lock-out
Box Four 1×8 speed drivetrain
Powerful hydraulic disc brakes
24 x 2.0″ Maxxis Rekon Tyres

Features:

Frame: Nucleus Aluminium – 24″ Wheel, BSA threaded BB, IS disc brake mounts, 135mm x 9mm QR Axle

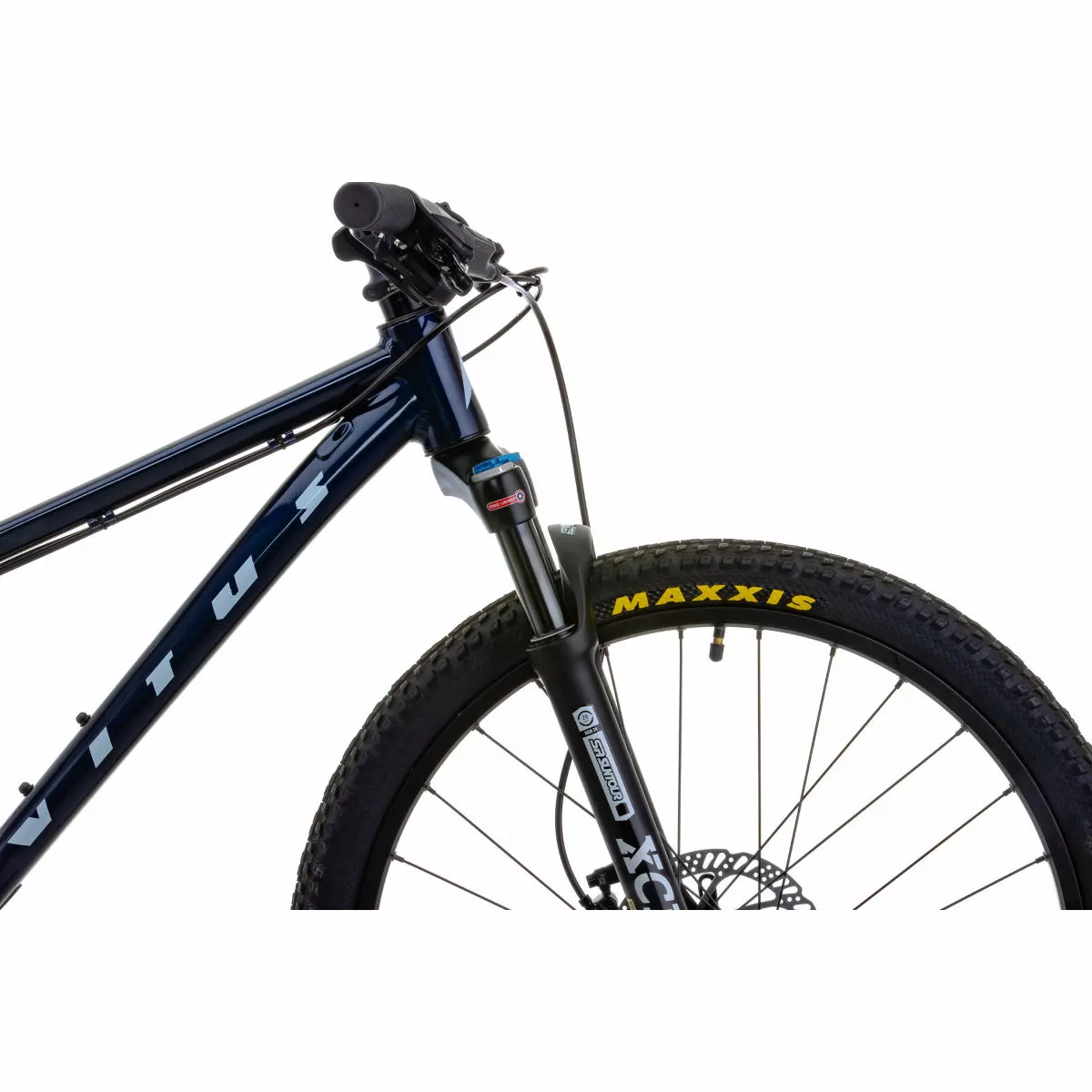

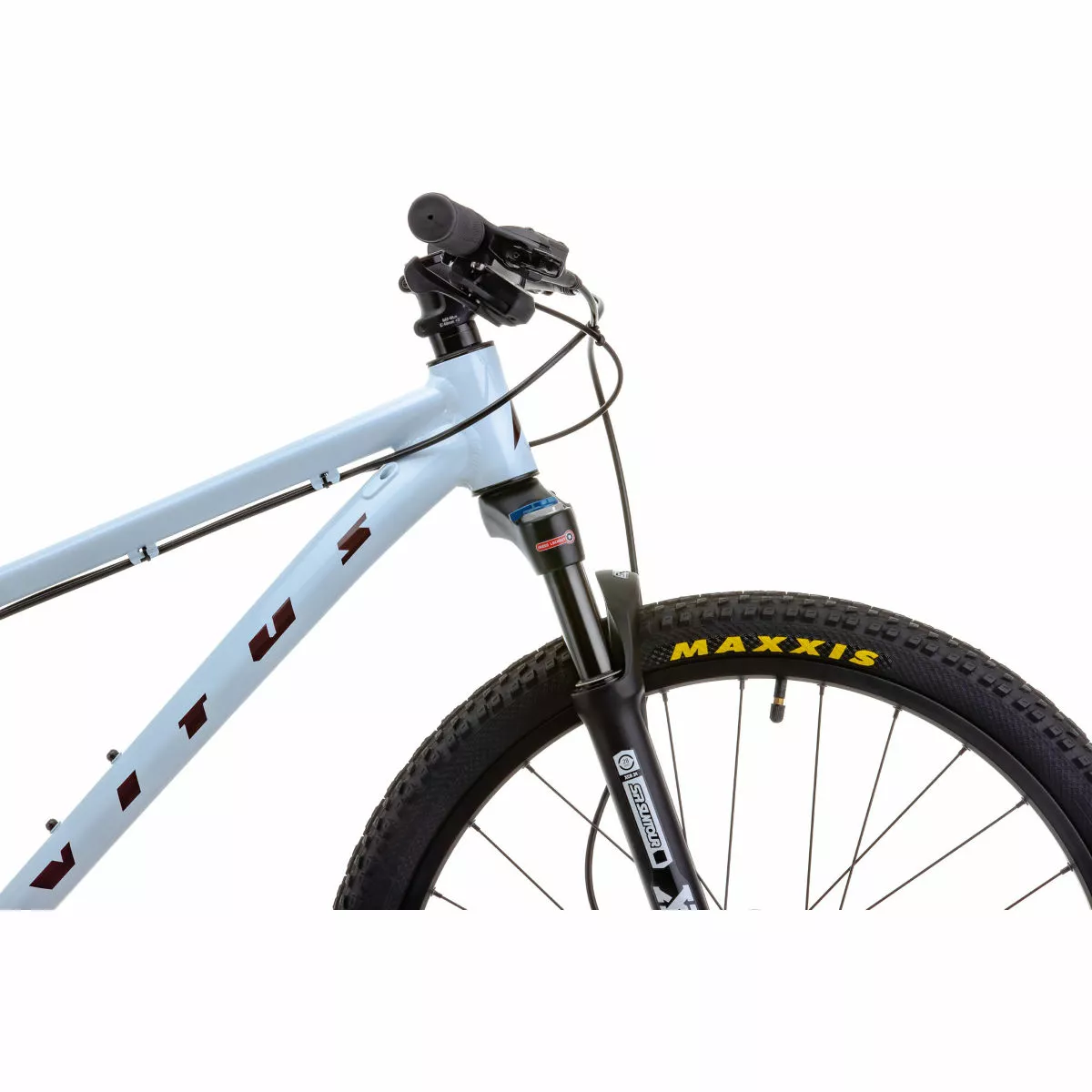

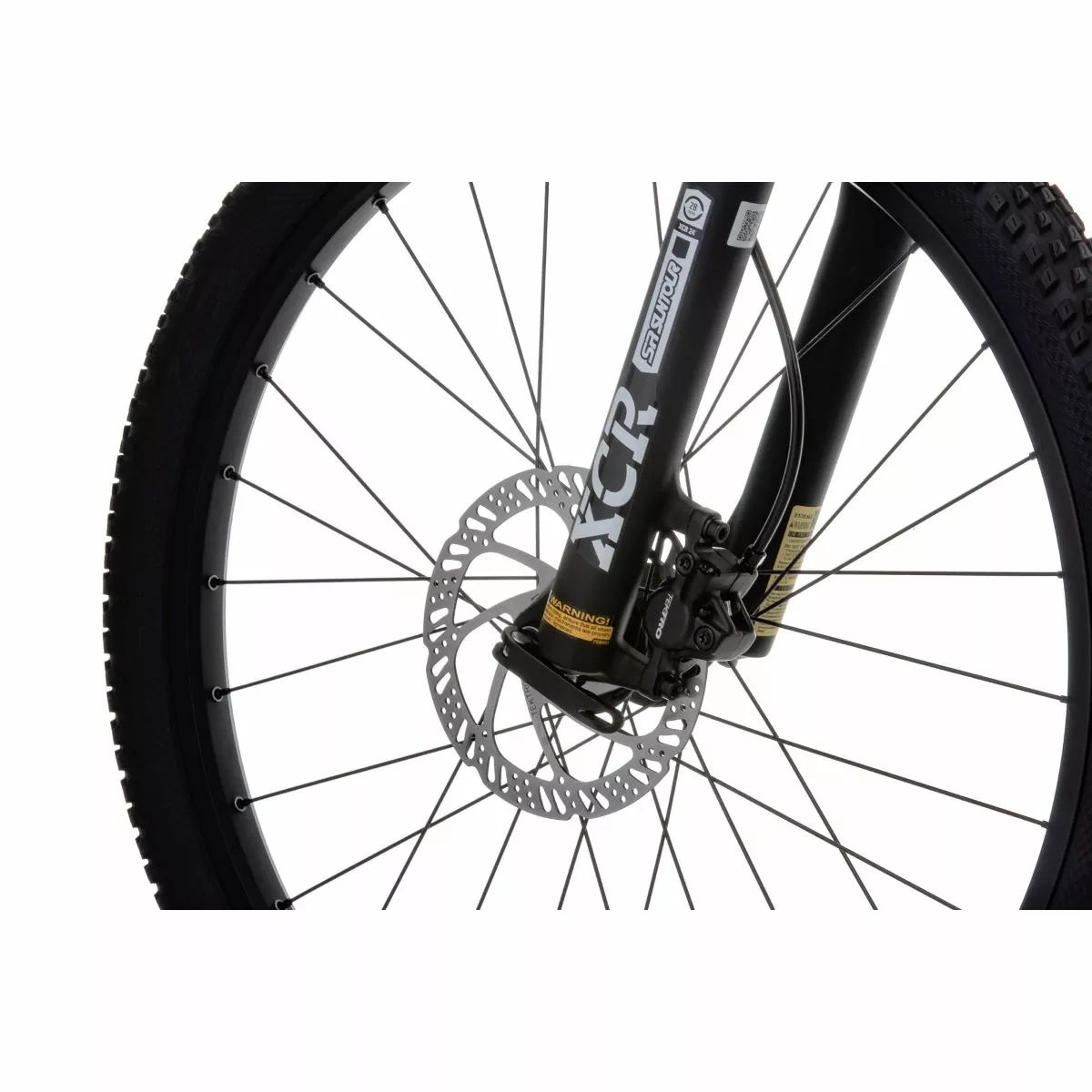

Fork: Suntour XCR-DS-LO Air Forks, 60mm travel, IS Mount, 100mm x 9mm QR Axle, Lock-Out, 1 1/8″ Steerer
Headset: Neco No:11G, Semi-Cartridge, 1.5mm Top Cover, Height 9.8mm

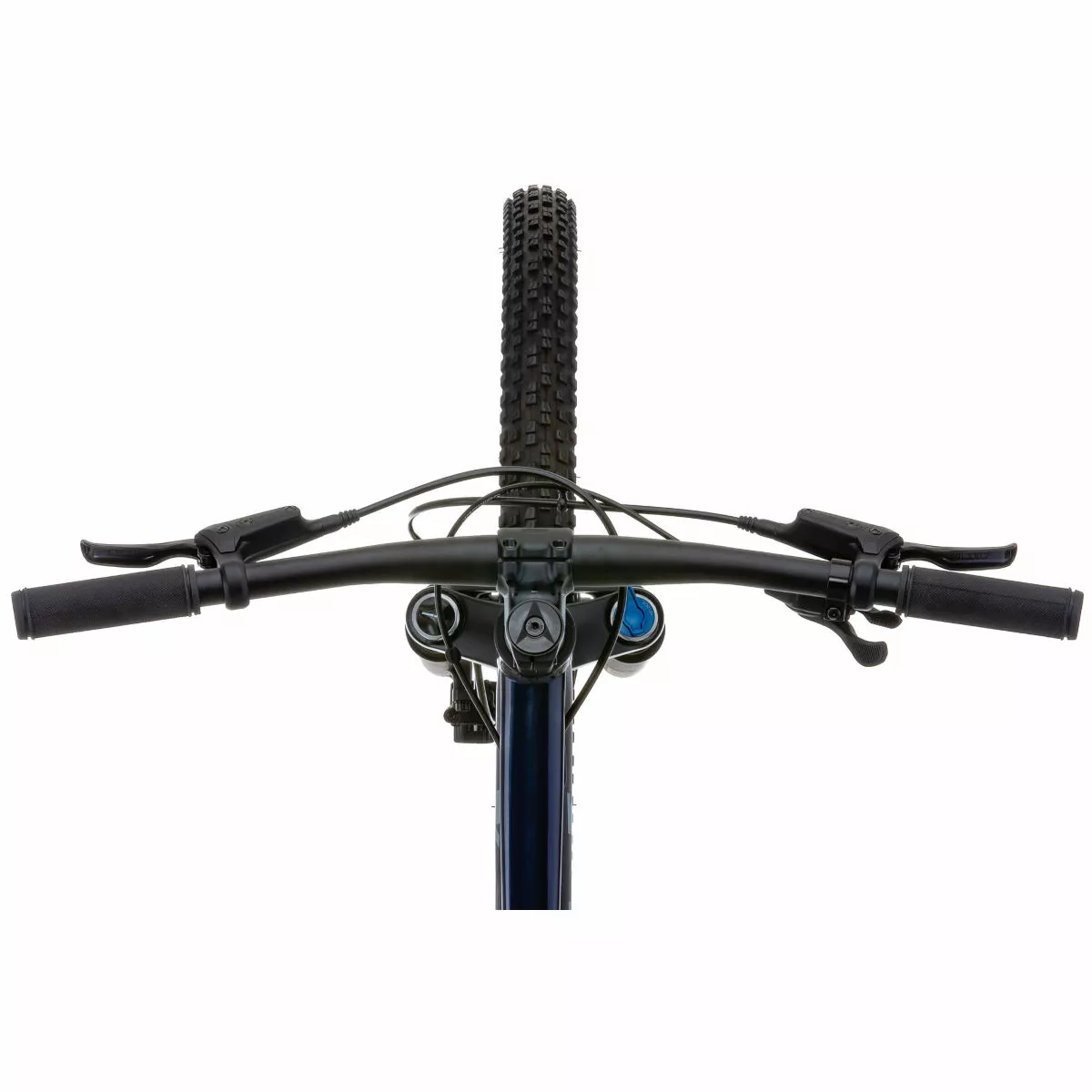

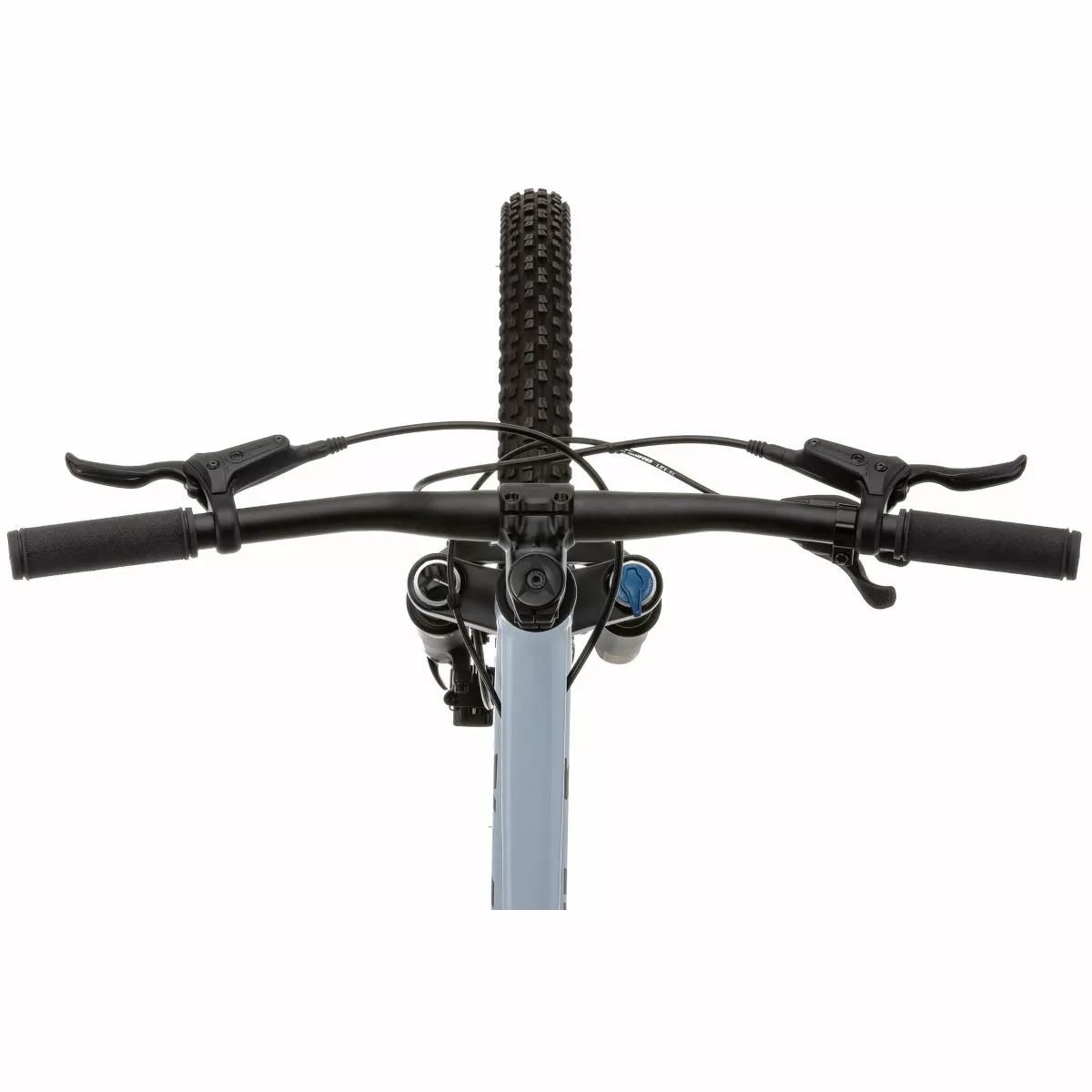

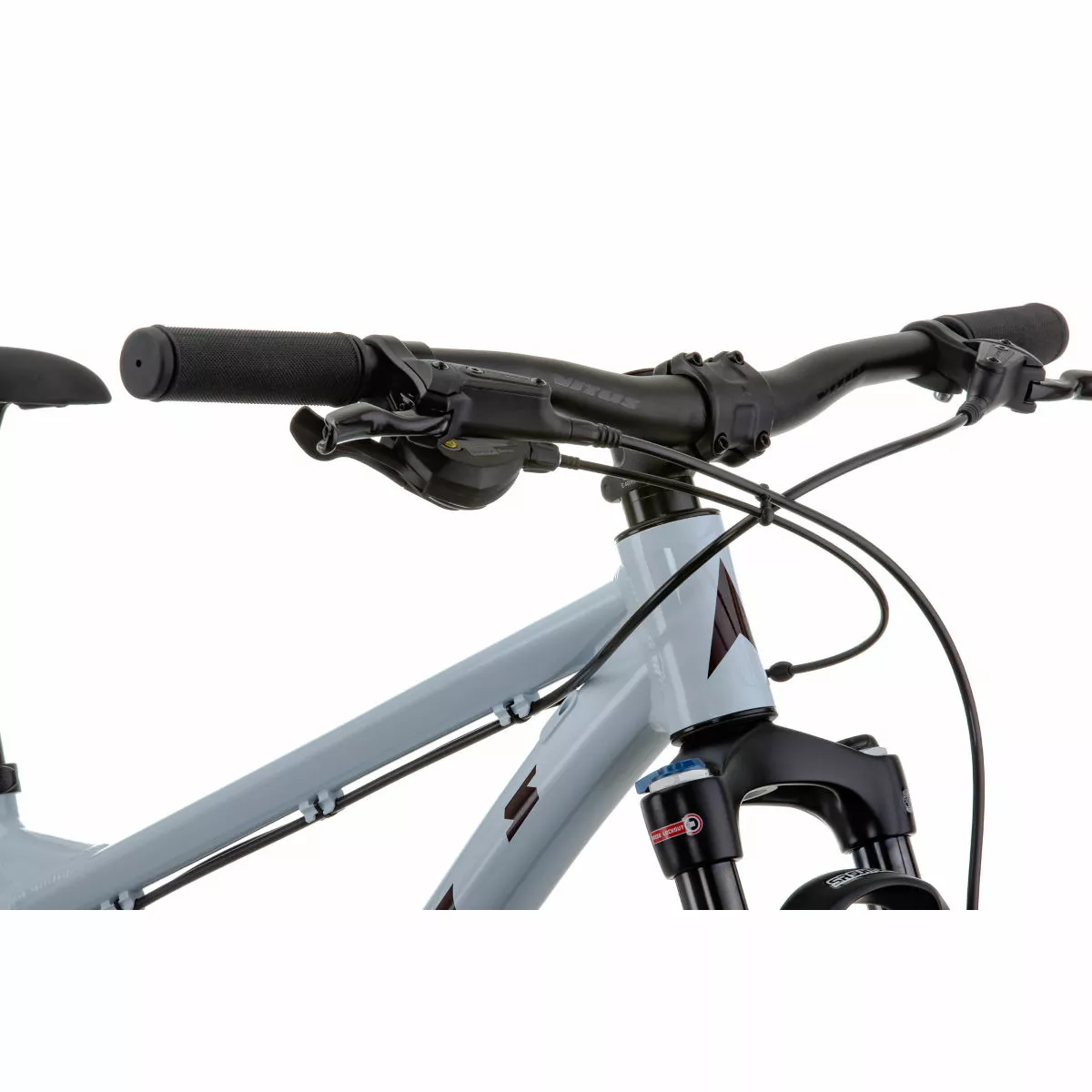

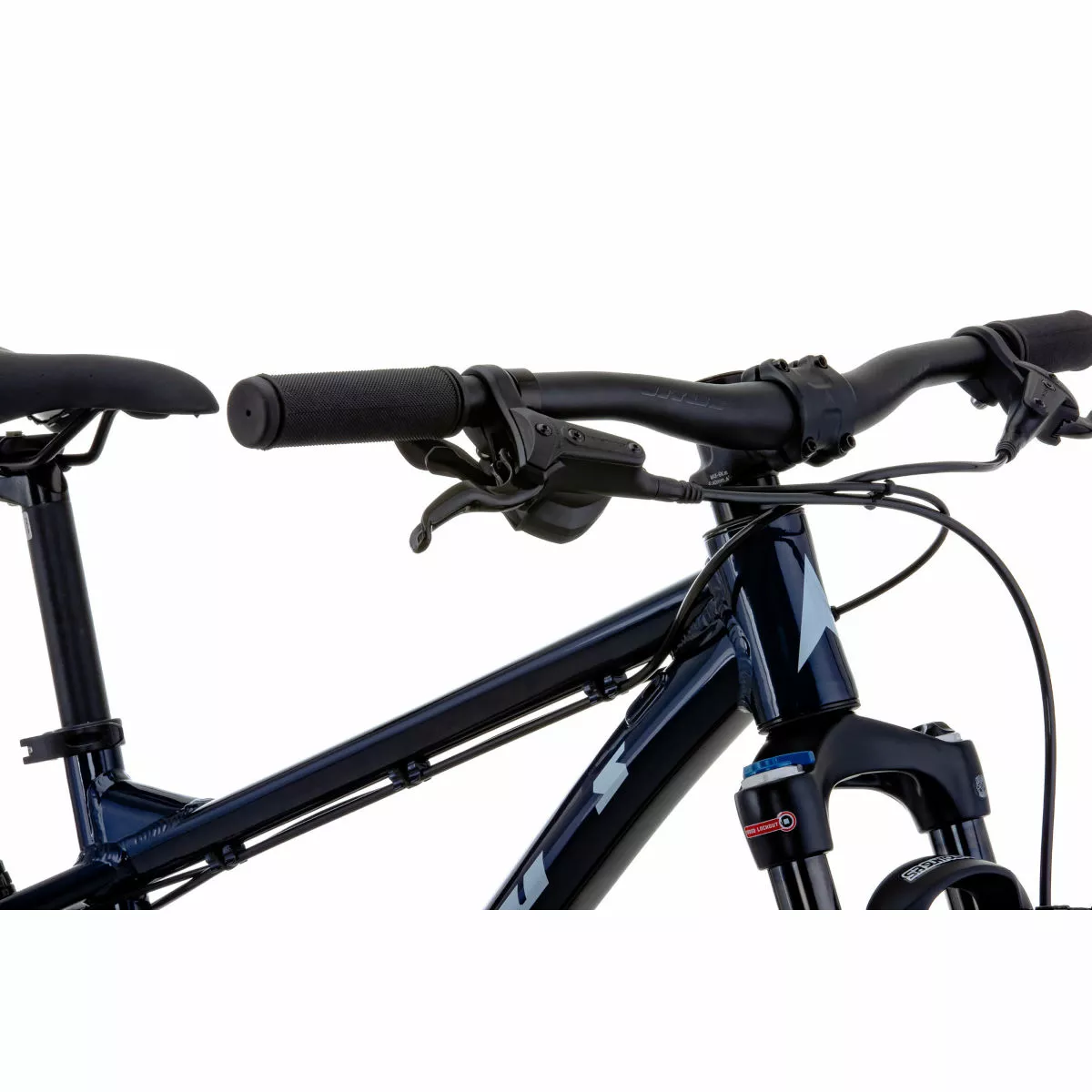

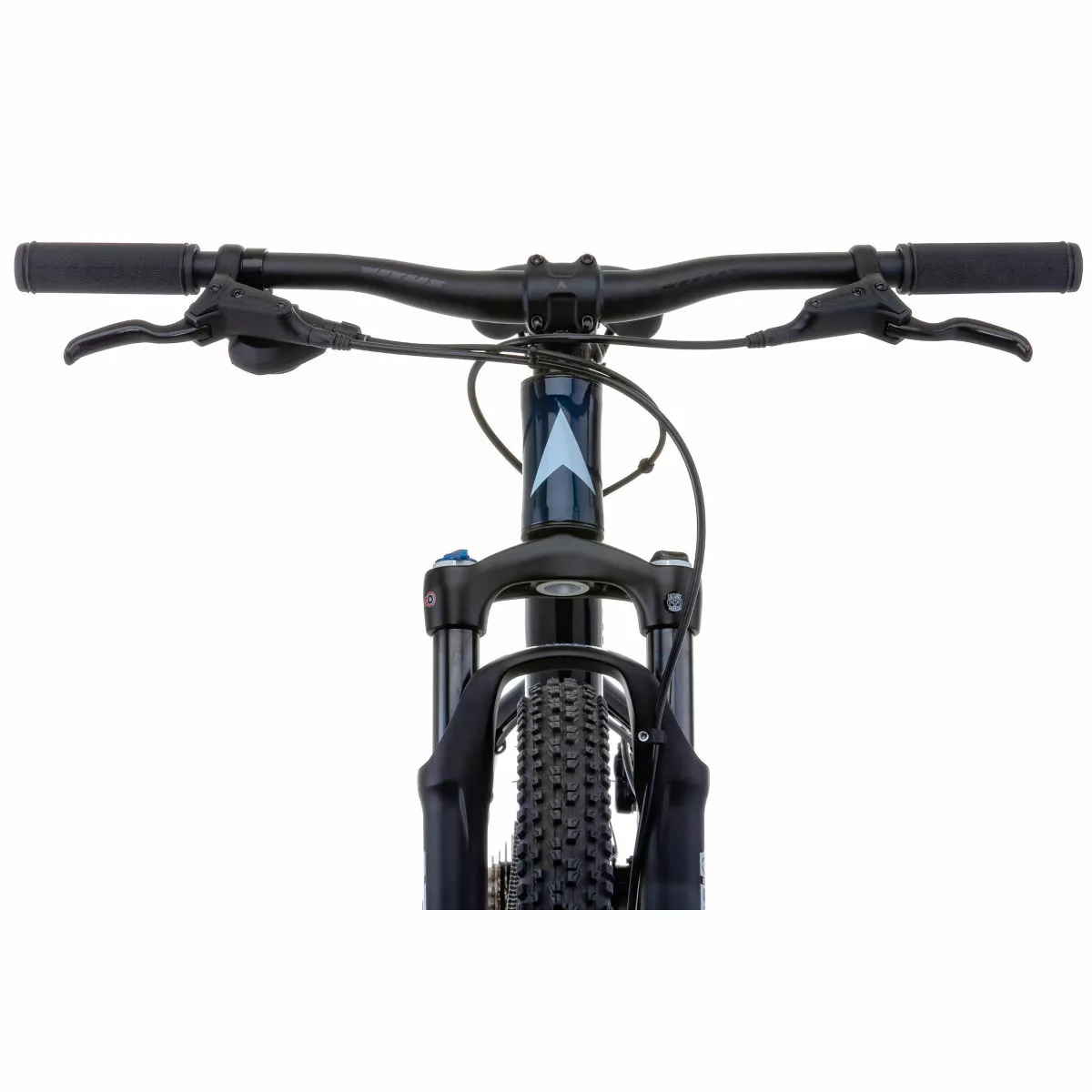

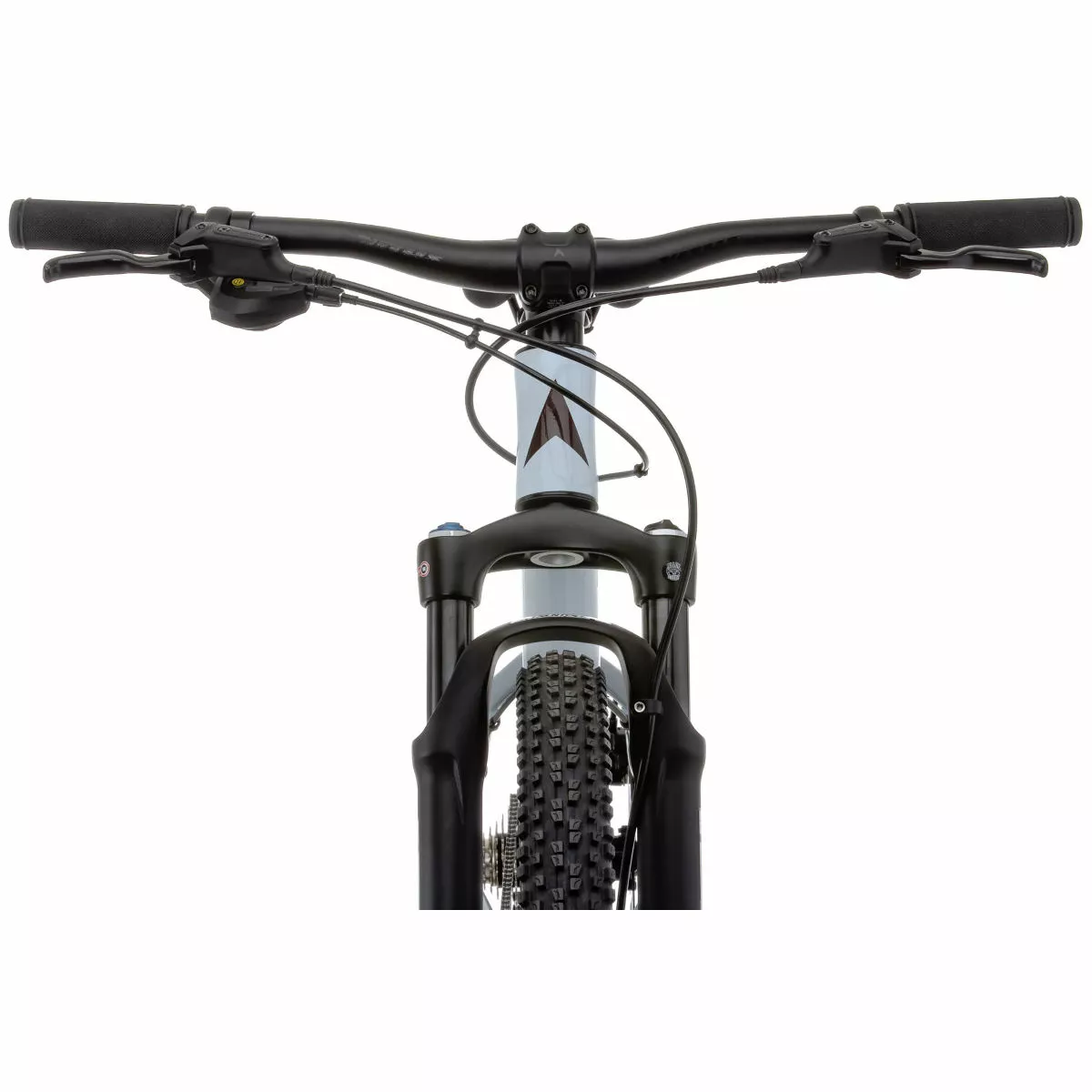

Handlebar: Vitus 6061 Aluminium, 15mm Rise, 9° Back Sweep, 620mm Wide
Stem: Vitus 6061 Aluminium, 40mm Length, +/- 3°
Grip(Tape): Vitus, 110mm, Closed End
Wheelset: Vitus, 24″, 6-Bolt Disc Brake, HG Freehub, 100mm x 9mm QR Front, 135mm x 9mm QR Rear
Front Rim: Vitus Shining, BX-32, 24″, 28 Hole, Double Wall, Eyelets, Disc Specific
Rear Rim: Vitus Shining, BX-32, 24″, 28 Hole, Double Wall, Eyelets, Disc Specific
Front Hub: Vitus KT, K08F, 28 Hole, 6 Bolt, 100mm x 9mm QR
Rear Hub: Vitus KT, K08R, 28 Hole, 6 bolt, 135mm x 9mm QR, 8/9/10 Speed HG Freehub
Front Tyre: Maxxis Snyper 24” x 2.0”
Rear Tyre: Maxxis Snyper 24” x 2.0”
Chain: Box Four 8, 8 Speed

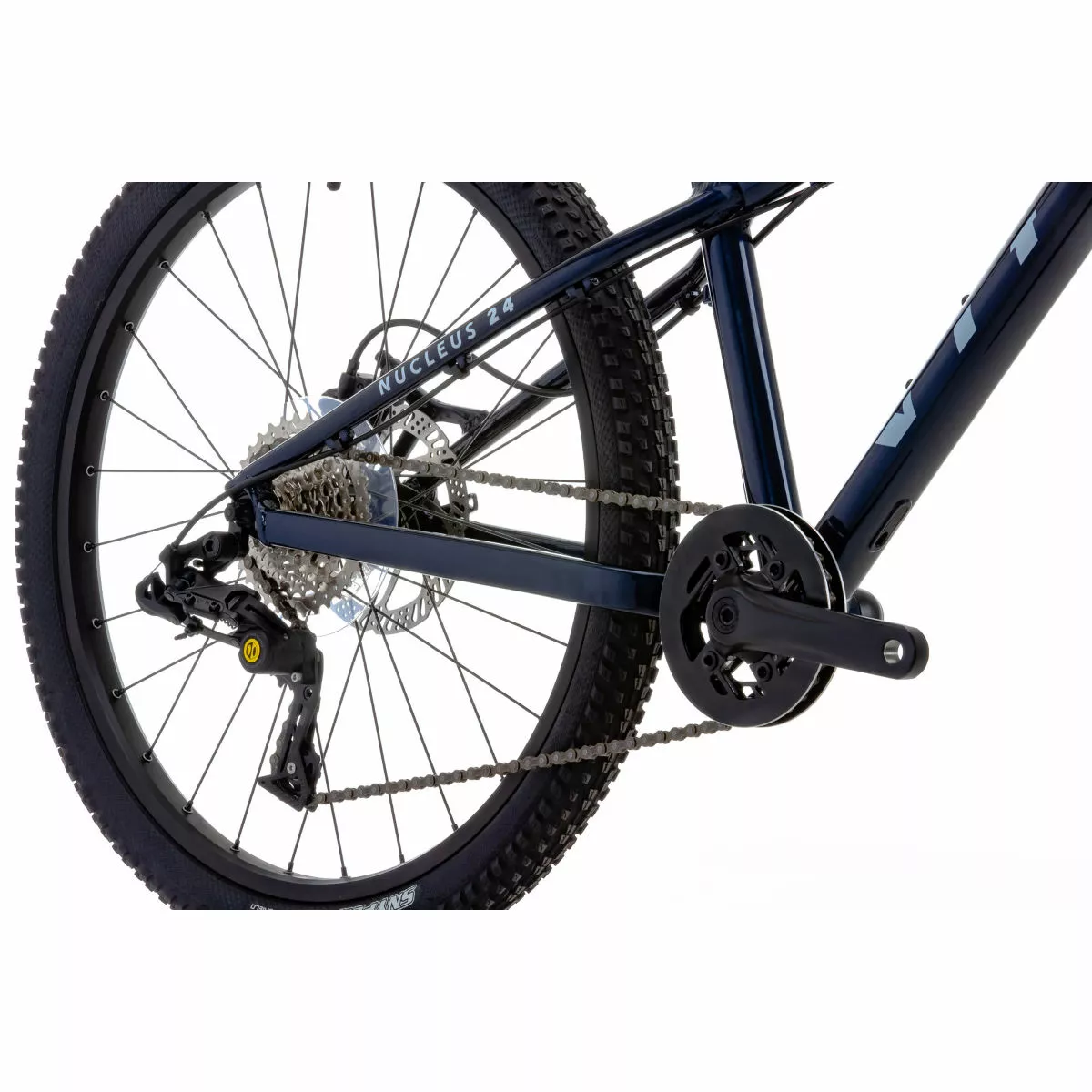

Crankset: Samox, 140mm Crank Arm, 30T, Double Chain Guard, Reduced Q Factor
Bottom Bracket: Cartridge Square Taper, BSA Threaded, 68mm Shell, English Thread, 113.5mm Axle Length

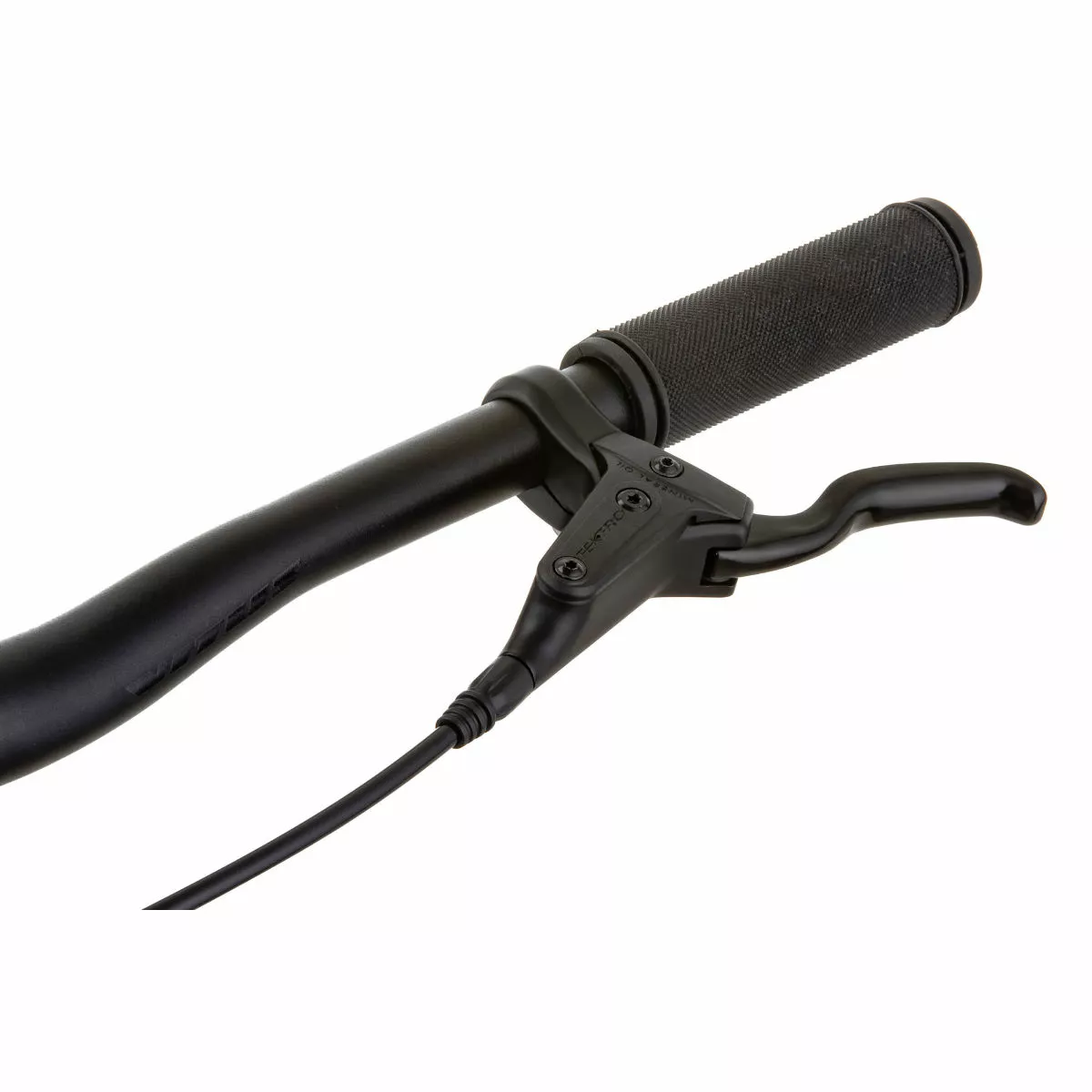

Front Brake Set: Tektro HD-M275 Disc Brake, Hydraulic, Reach Adjust or Clarks M2 Disc Brake, Hydraulic, Reach Adjust
Rear Brake Set:  Tektro HD-M275 Disc Brake, Hydraulic, Reach Adjust or Clarks M2 Disc Brake, Hydraulic, Reach Adjust
Rotors: Tektro TR160 or Clarks M2, Front: 160mm, Rear: 160mm

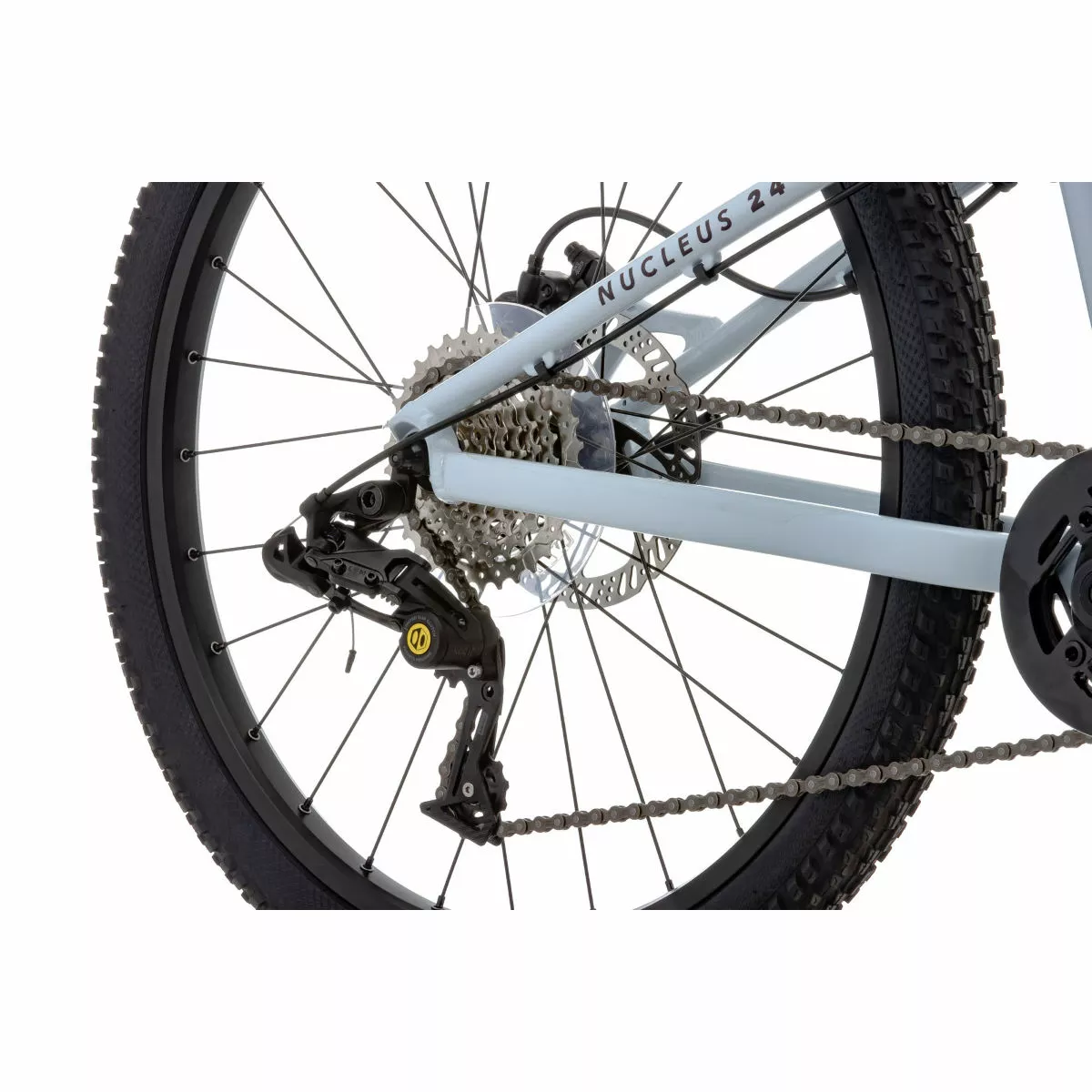

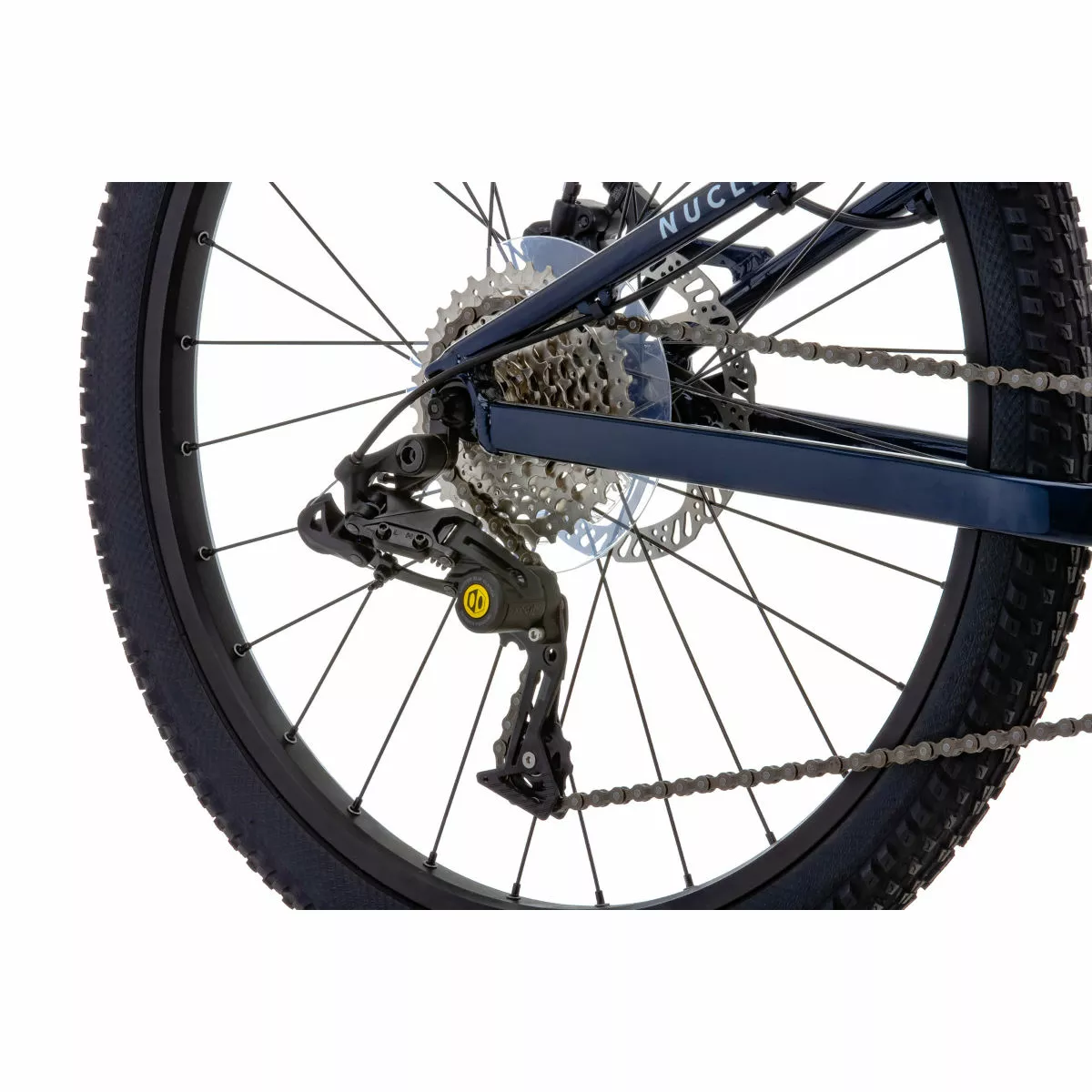

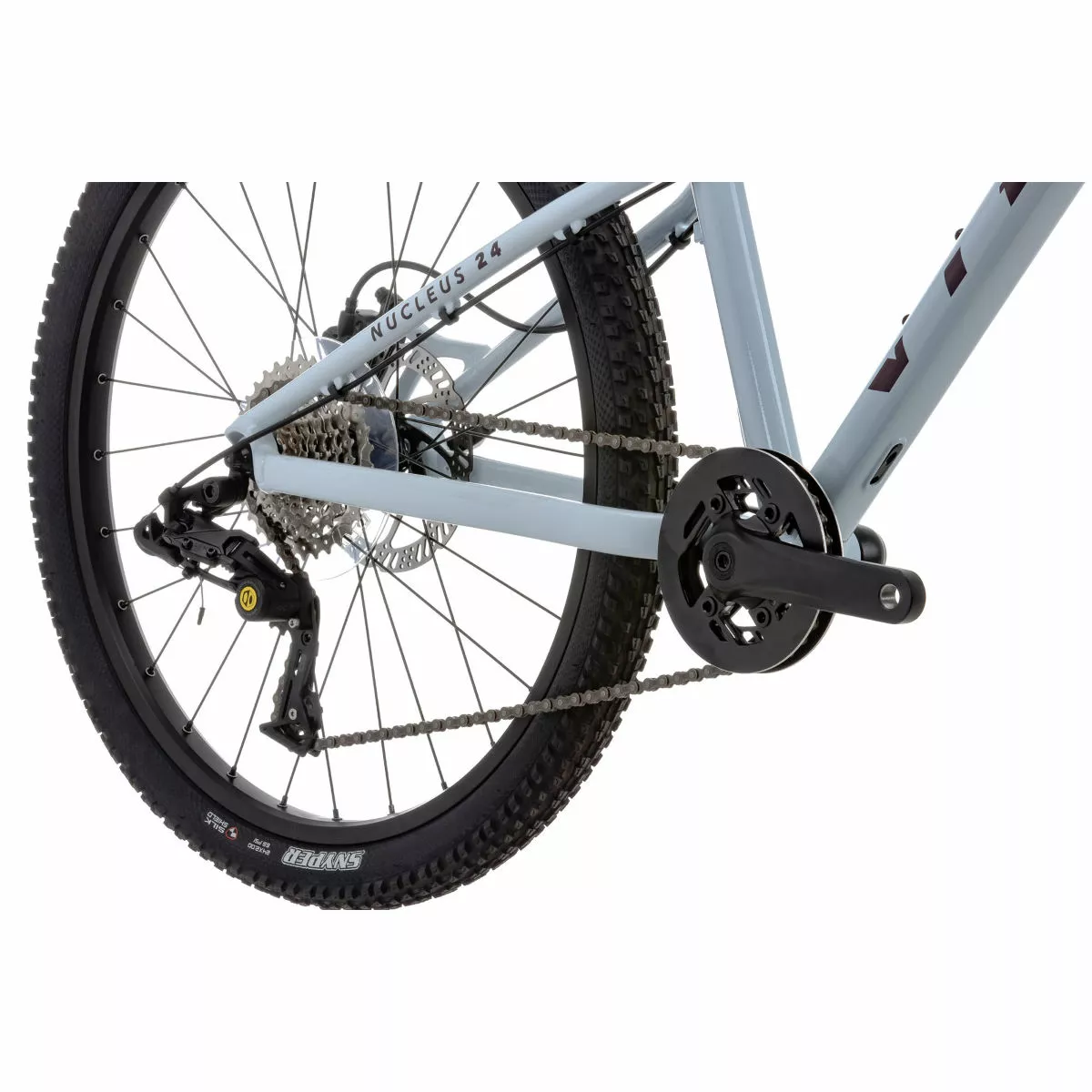

Rear Derailleur: Box Four 8, 8 Speed w/ Clutch
Rear Shifter: Box Four 8, 8 Speed
Freewheel: Sunrace CSM66, 11-34T, 8 Speed

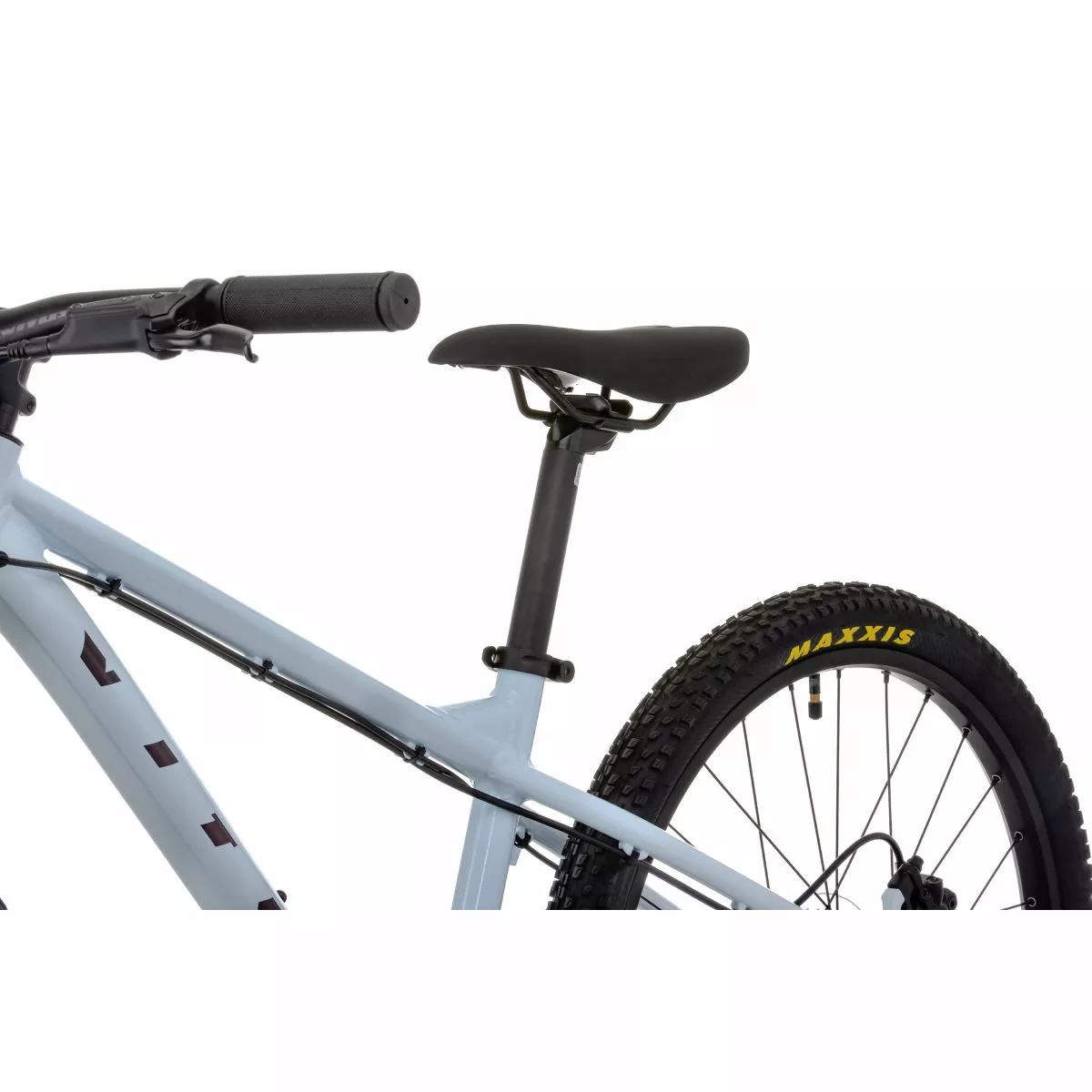

Saddle: Vitus, Kids Specific, Steel Rail
Seat Post: Vitus 6061 Aluminium, 27.2mm x 250mm, 20mm Offset
Seat Screw: Aluminium 31.8mm, Stainless Steel Bolt
Weight: 12kg

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
