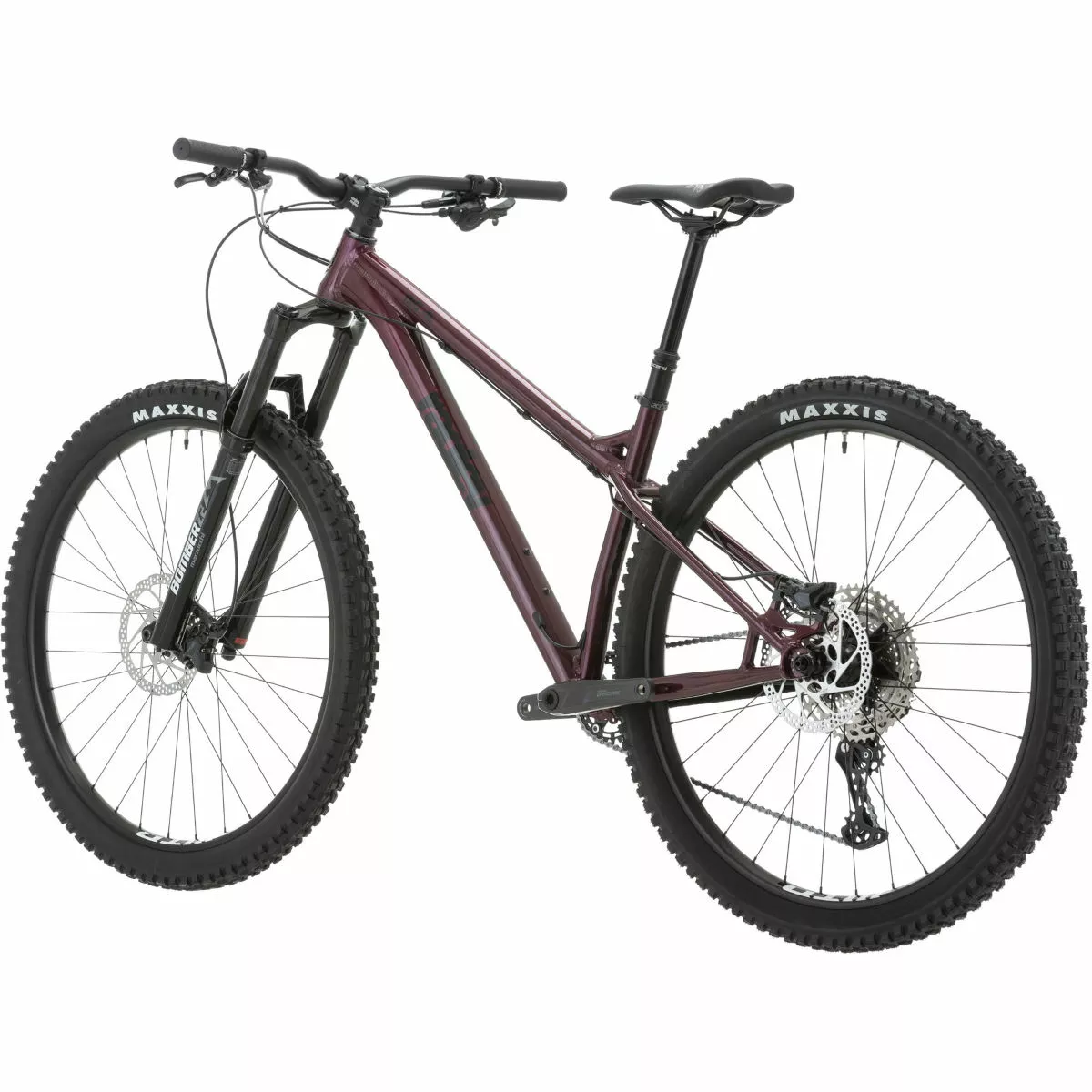

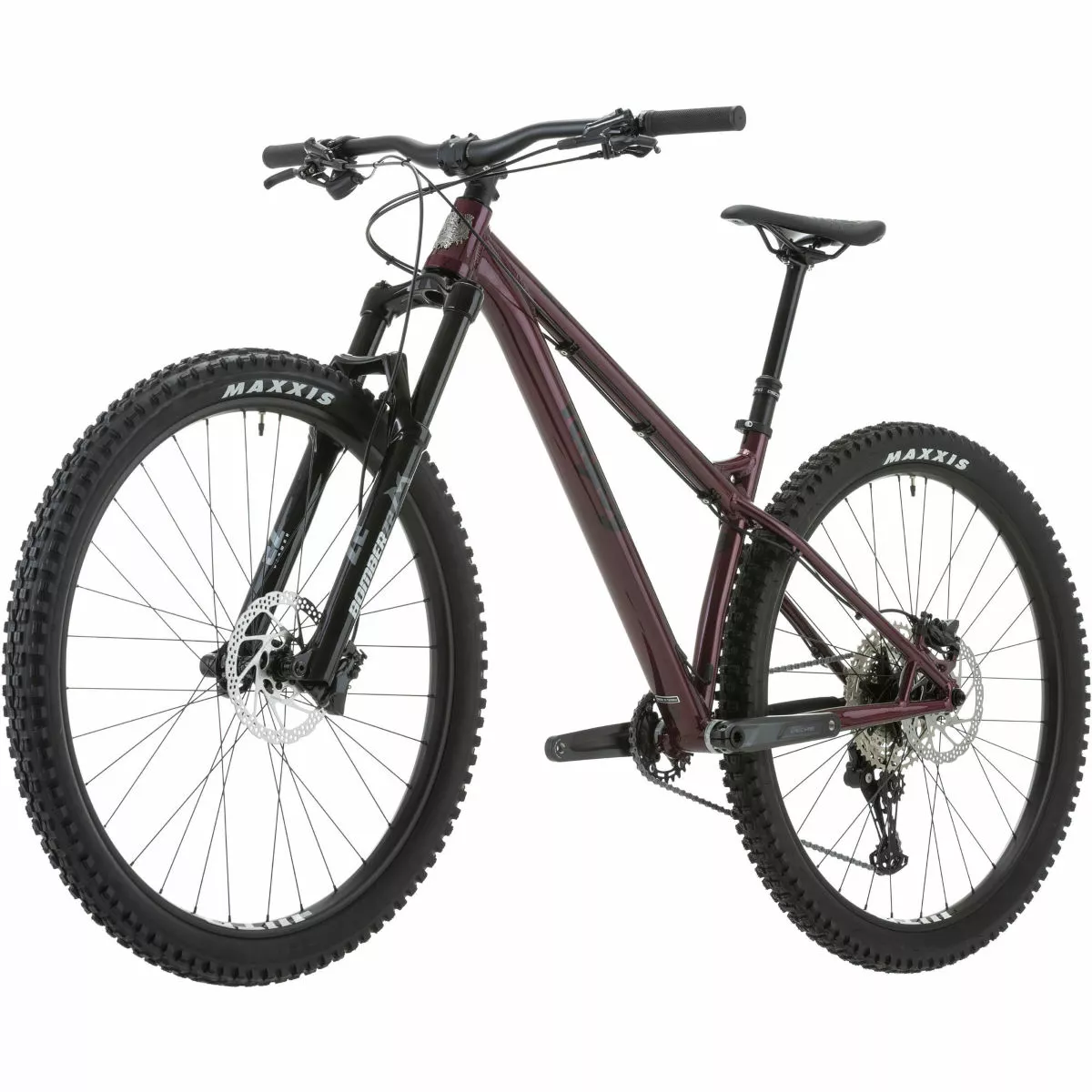

Ragley Big AL 1.0 Hardtail Bike – Raspberry

The Big AL is the “big brother” to the Ragley Marley, with many of the same features that made it such a success. It has also been upgraded with Marzocchi Z2 Rail suspension forks for responsive handling and Shimano Deore M5100 11-Speed groupset with SRAM DB8 hydraulic disc brakes for precise shifting and powerful all-weather braking performance.

The Big AL is the 29” counterpart to the Marley; designed as a fun all-rounder with the same performance and value that made its smaller-wheeled sibling a multiple test winner.

The Big AL 1.0 takes all that’s great about the 2.0 but upgrades the spec: The addition of the group test winning Brand-X Ascend dropper plus the upgraded 11-speed Deore groupset and SRAM DB8 brakes.

Keeping things lively at the business end; a Marzocchi Z2 Rail provides additional stiffness with 140mm of exceptional damping to keep the front wheel digging into the dirt.

A perfect balance between all-out gravity led tomfoolery and practical pedalability. Just like the Marley, the Big AL is well mannered during a leisurely all-day ride but drop the saddle and send it down the rough stuff for the good times…

Features:

Frame: Ragley Big AL – Alloy Boost 29″

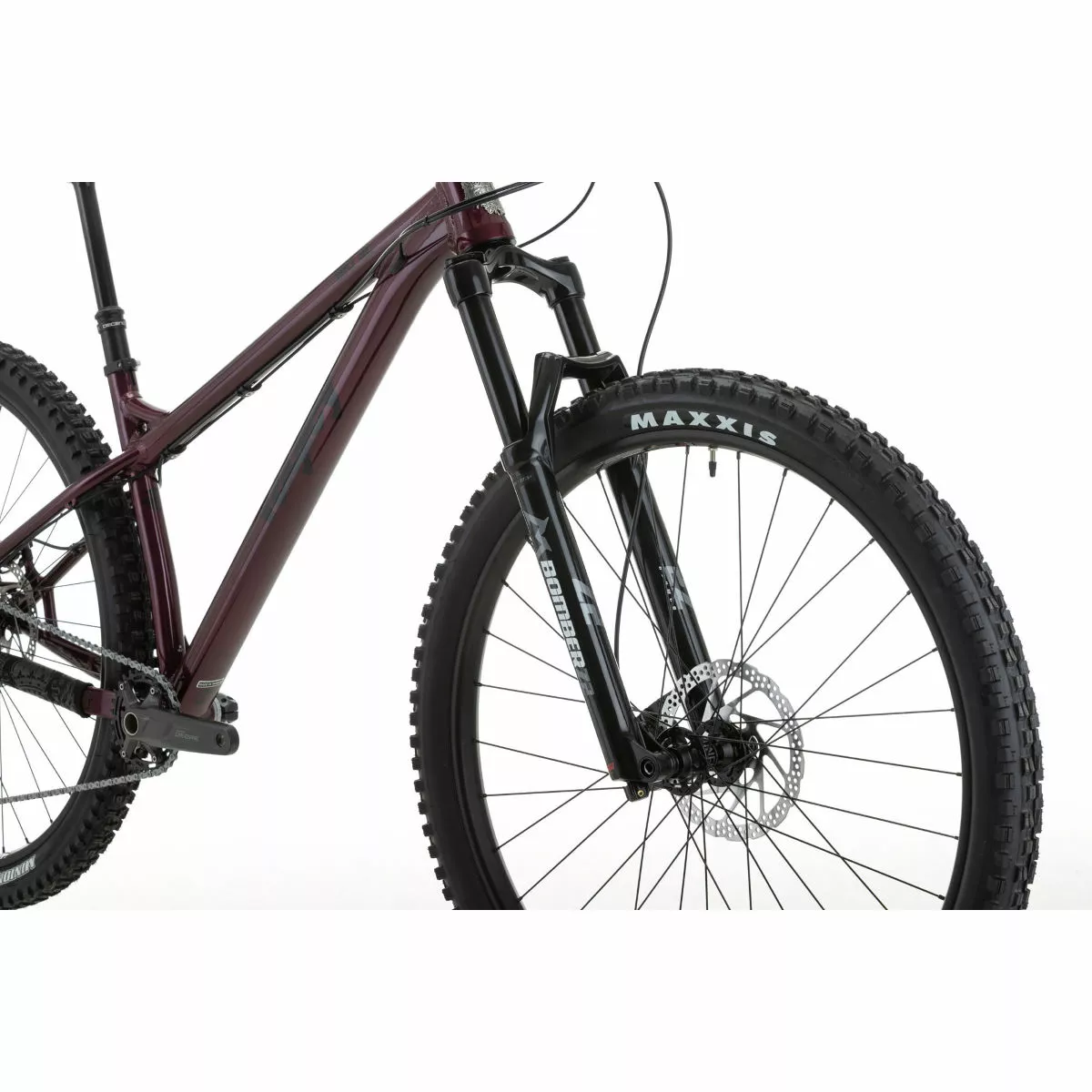

Fork: Marzocchi Bomber Z2, 140mm Travel, RAIL, Gloss Black, Kabolt:15×110, 1.5 Tapered steerer, 51mm offset

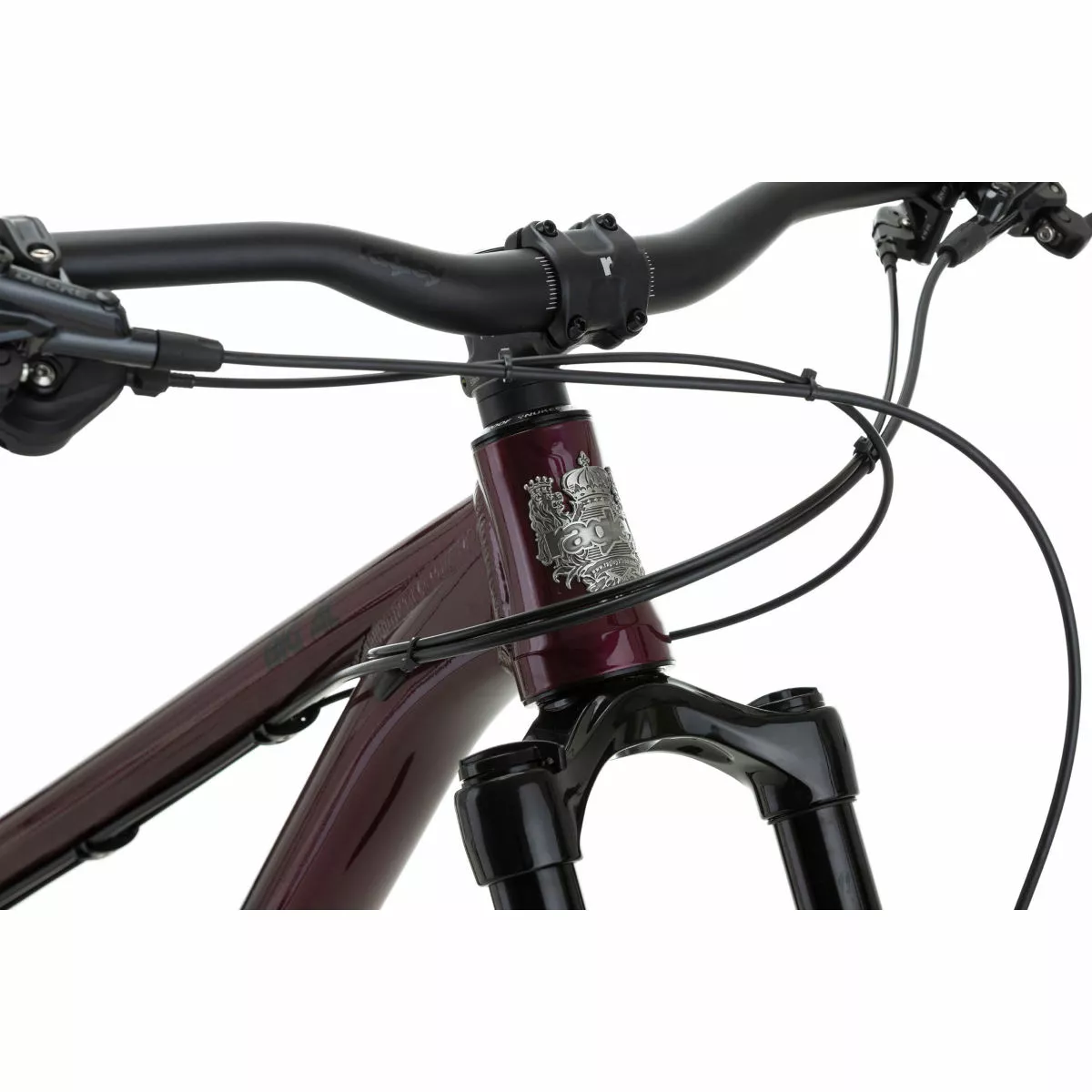

Headset: Nukeproof Neutron ZS44/28.6
ZS44/40 Headset with Ragley Top Cap

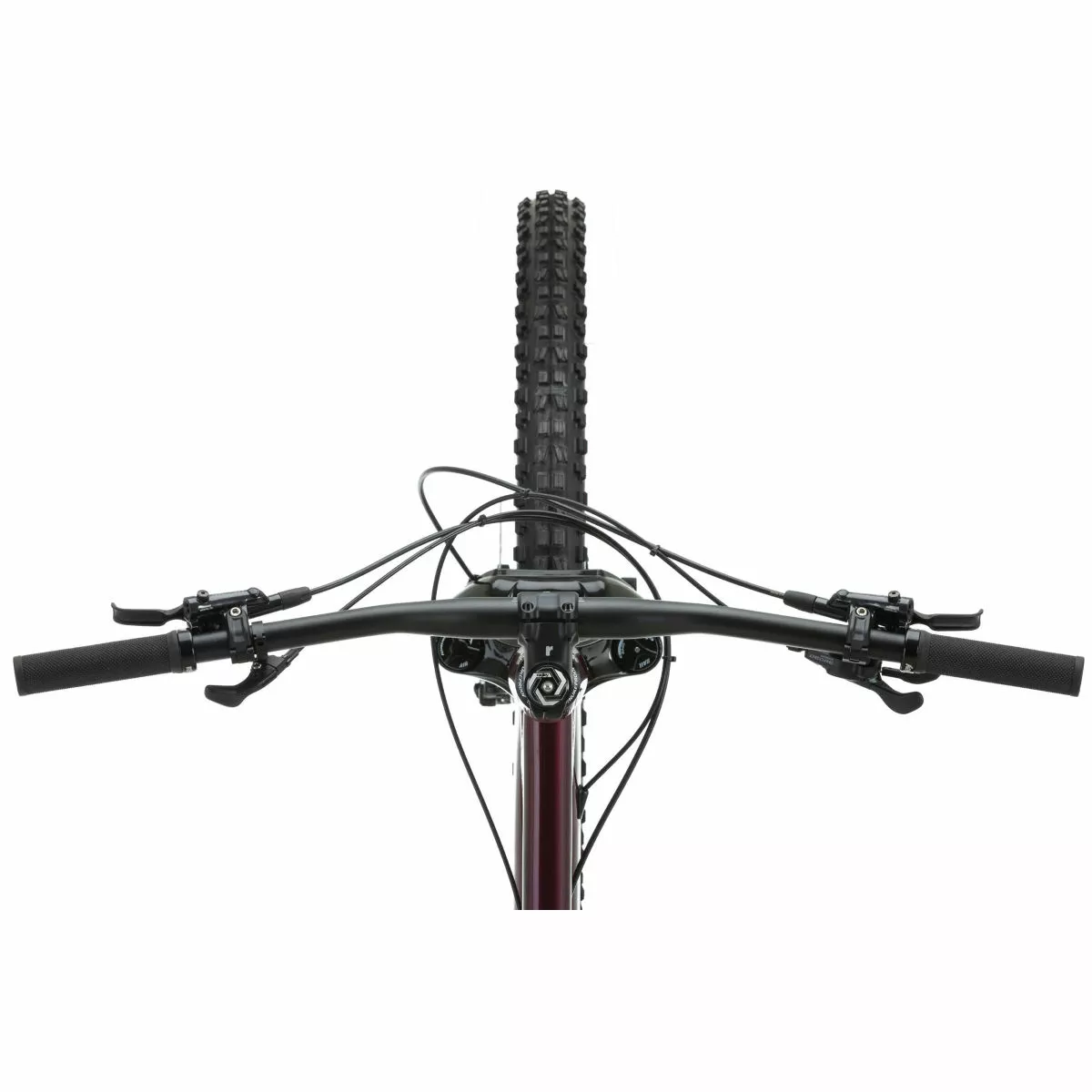

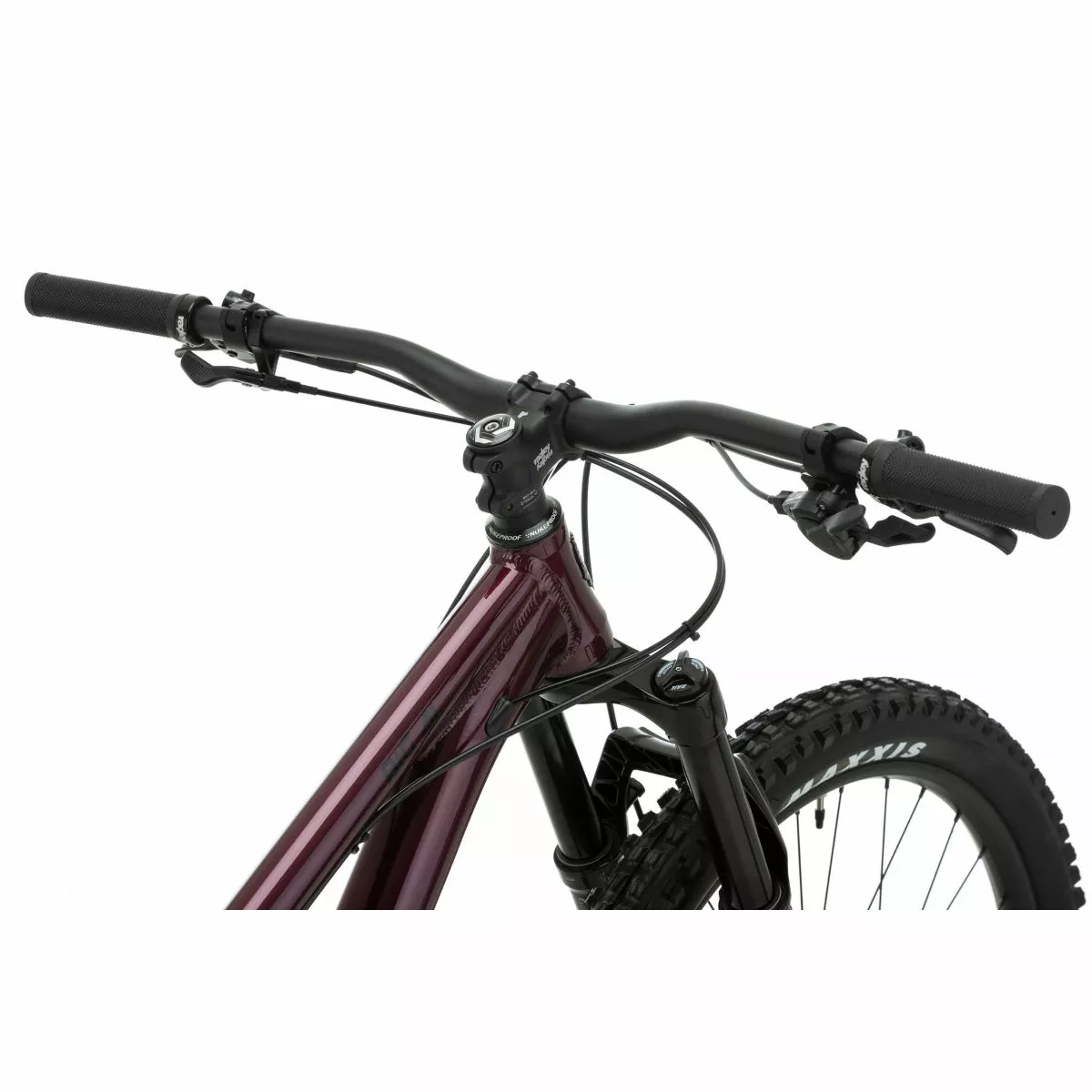

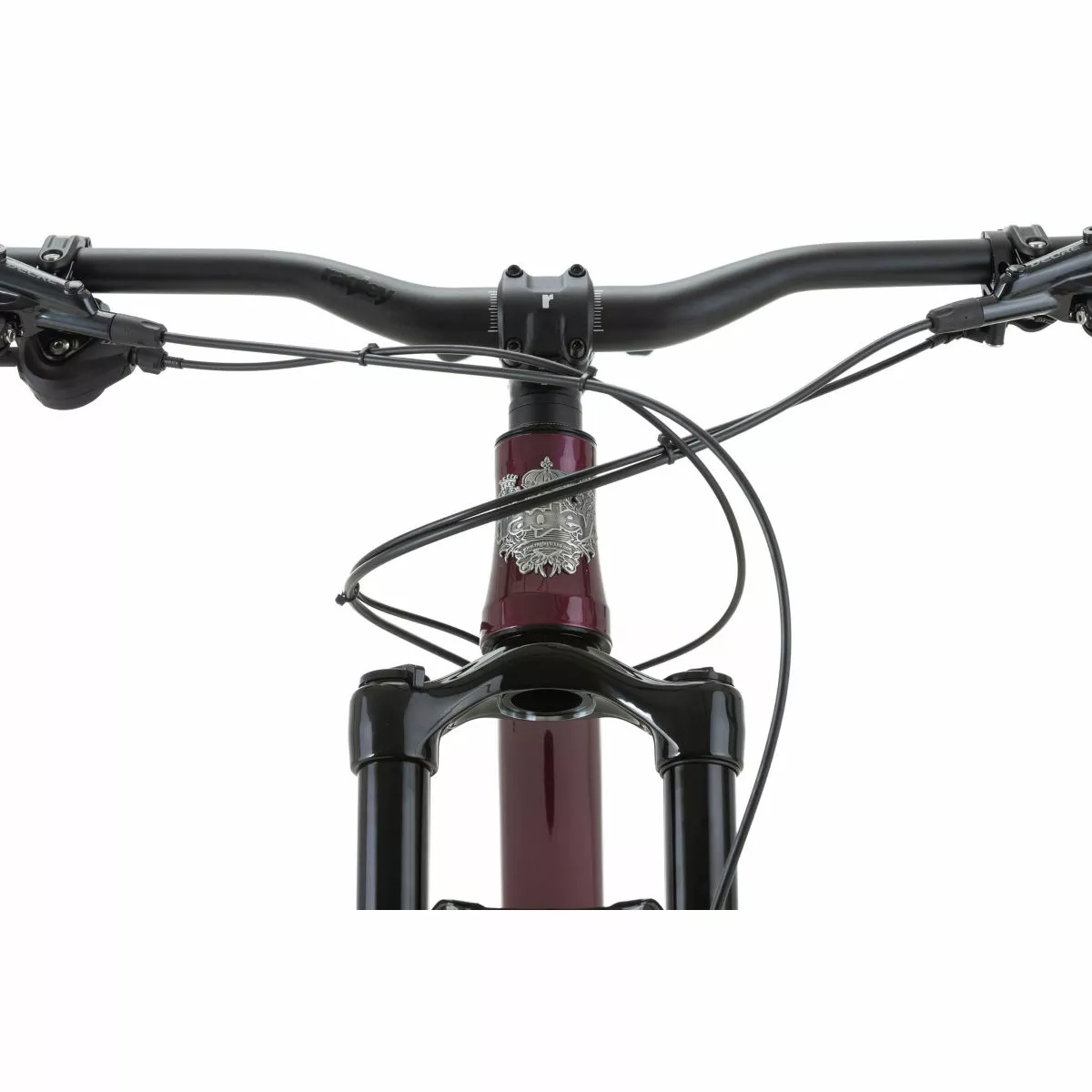

Handlebar: Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width – M780mm, L800mm, XL800mm)
Stem: Ragley 31.8mm clamp, 50mm length, +3° rise
Grips: Ragley A20 Compound
Front Wheel: Nukeproof Neutron 15mm Boost Front Hub, WTB ST i30 TCS 2.0 29″ 32h rim
Rear Wheel: Nukeproof Neutron 148mm x 12mm Rear Hub, 36 points of engagement, HG Freehub, Sealed bearings, WTB ST i30 TCS 2.0 29″ 32h rim
Thru Axle: Length: 175mm, Pitch: M12*1.5, Thread length: 18mm
Front Tyre: Maxxis Minion DHF 29×2.5 WT 3C MaxxTerra/EXO+/TR 120TPI
Rear Tyre: Maxxis Minion DHR II 29X2.40 WT 3C MaxxTerra/EXO/TR 60TPI
Rim Tape and Valves: 32mm Tubeless Tape and Tubeless tape supplied
Chain: KMC X-11, 11SPEED, Quick-Link, 118L

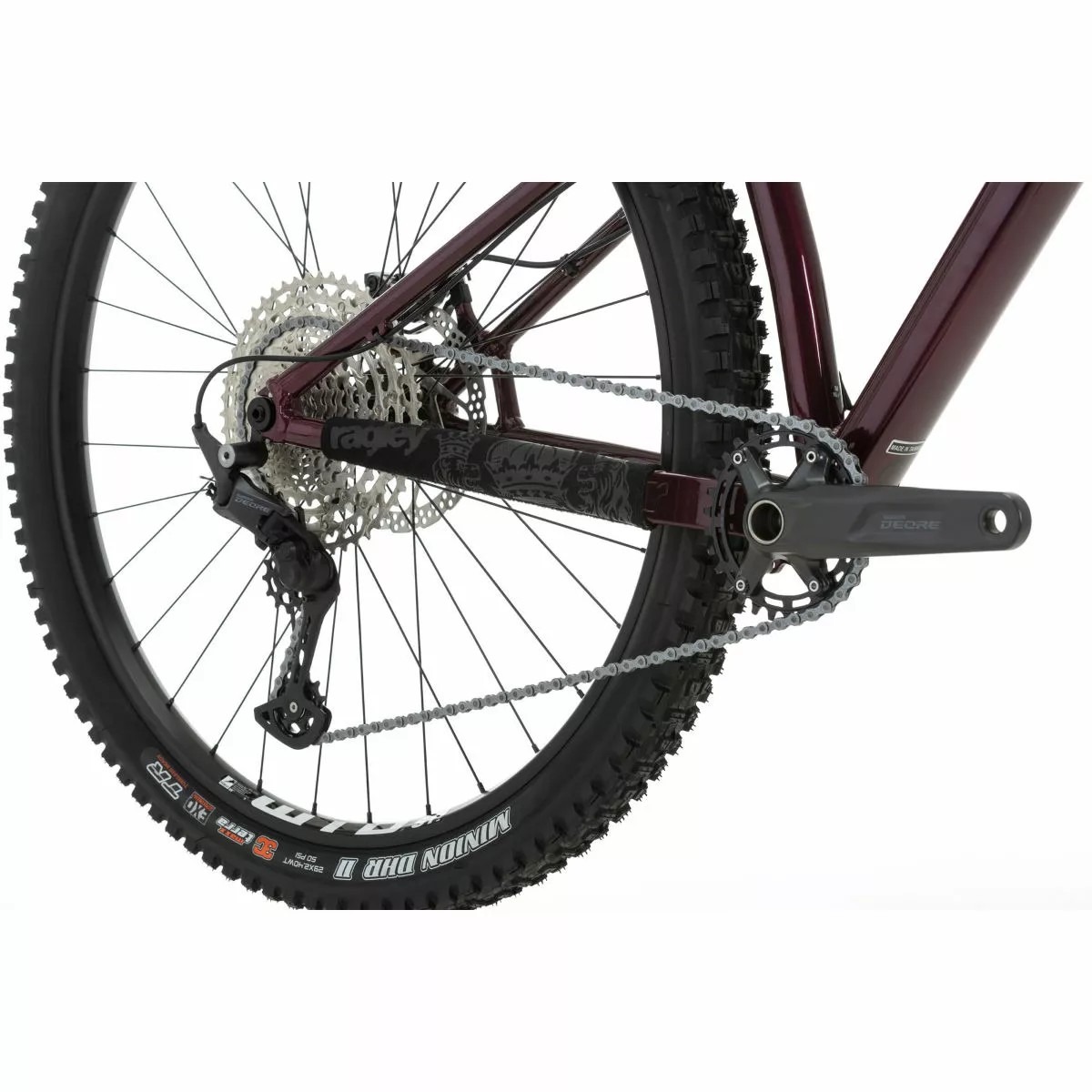

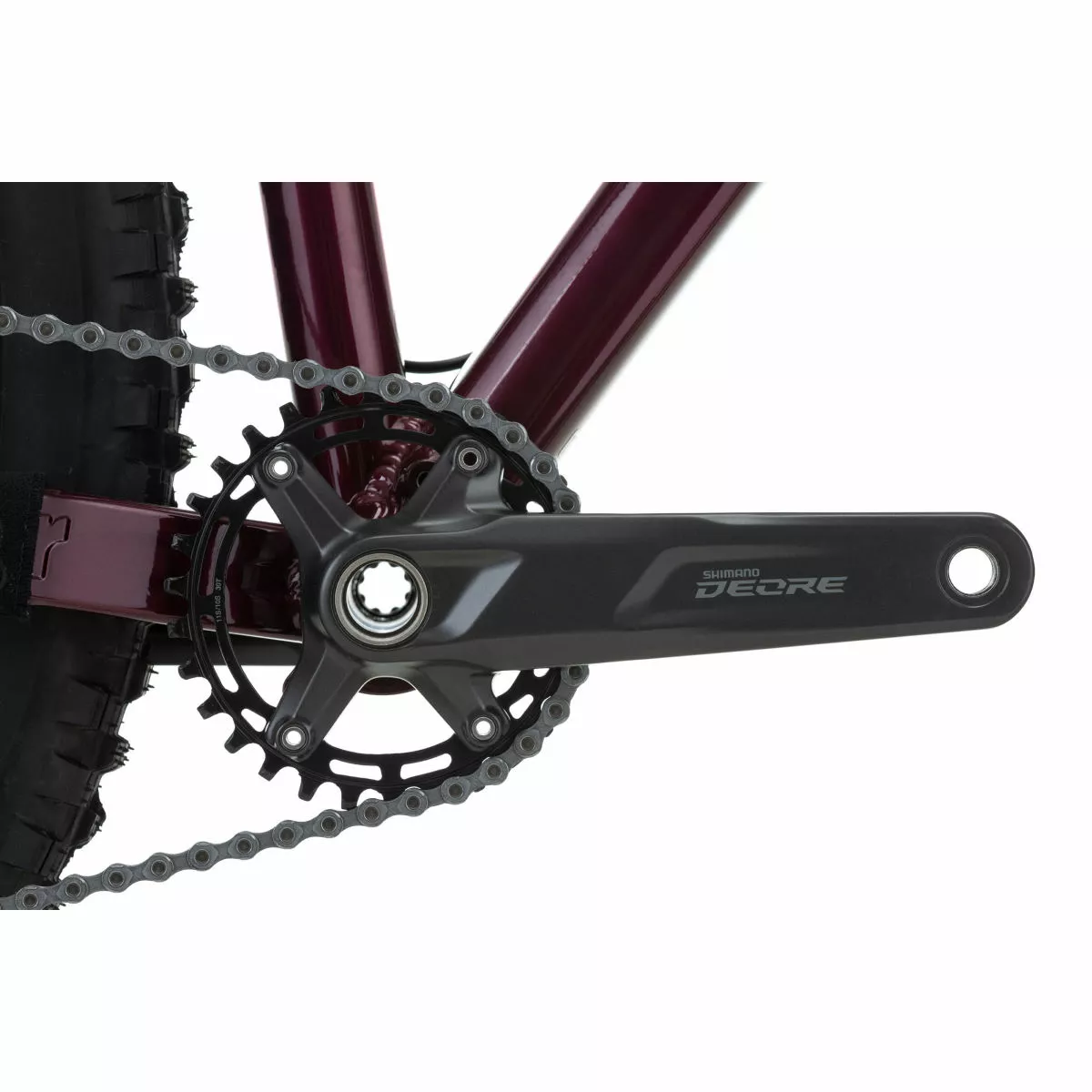

Crankset: Shimano Deore FC-M5100-1 or Race Face Ride, 170MM, 30T
Bottom Bracket: Shimano Deore Hollowtech II 73mm BSA
Front Brake: SRAM DB8, 180mm Rotor

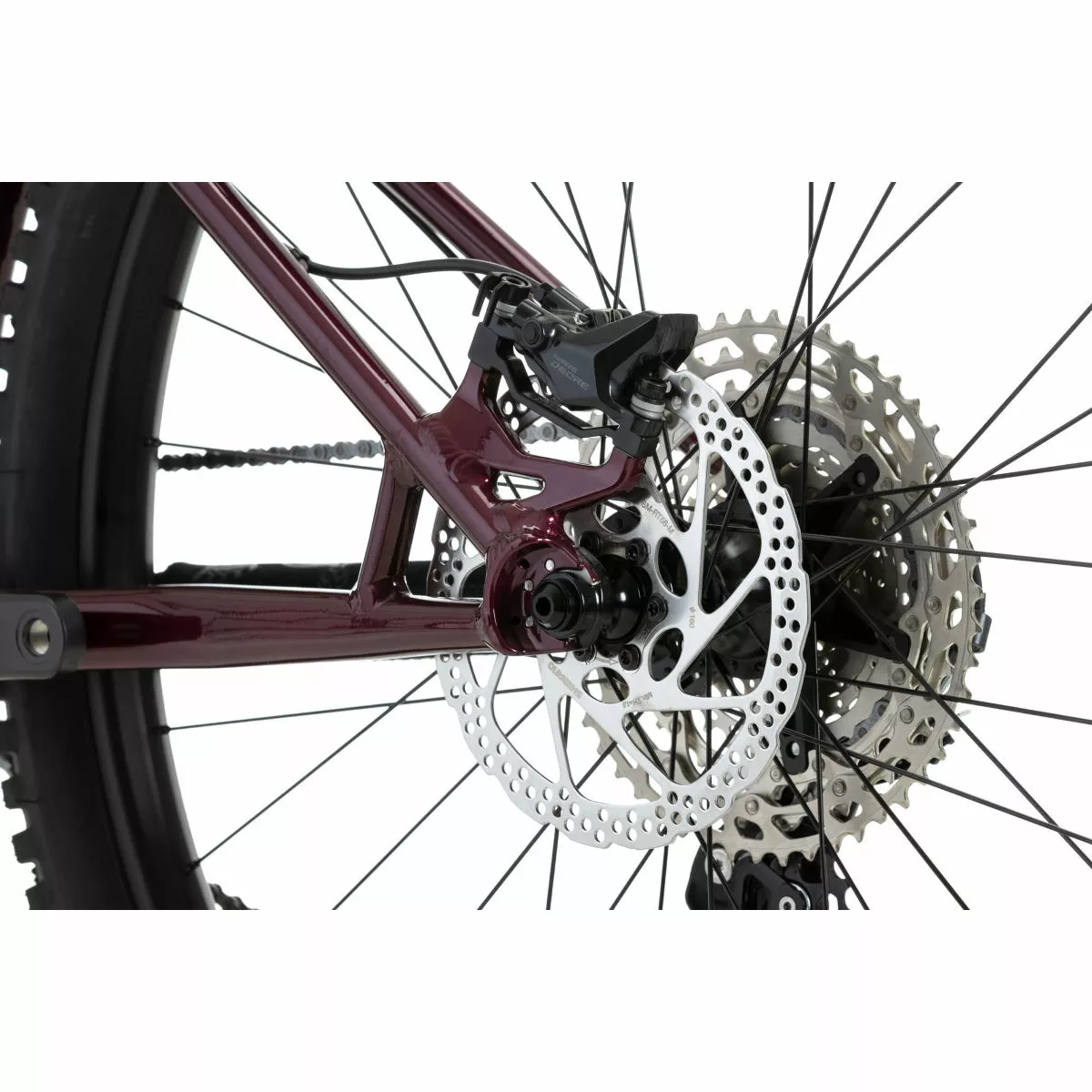

Rear Brake: SRAM DB8, 180mm Rotor
Rear Derailleur: Shimano Deore RD-M5100 SGS 11-SPEED, SHADOW PLUS DESIGN
Rear Shifter: Shimano Deore SL-M5100, 11-SPEED RAPIDFIRE, Direct attach to brake using iSpec EV
Drivetrain Cables: Shimano
Cassette: Shimano Deore M5100-11 11-51t or DTS GMX 11-50T
Saddle: Ragley Tracker Saddle

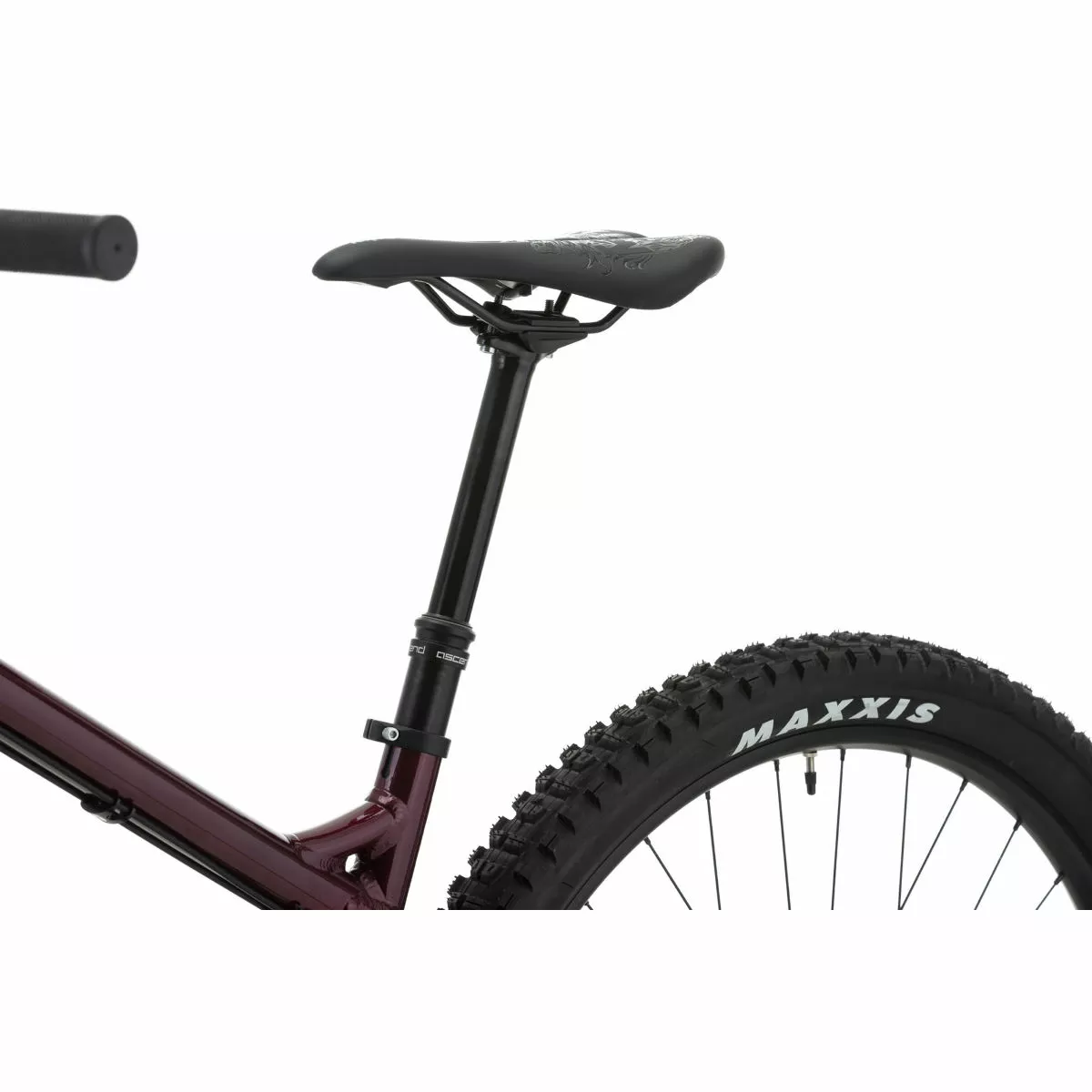

Seatpost: Brand-X Ascend Internal Routed 31.6mm, MD – 150mm Drop, LG/XL– 170mm Drop
Seat Clamp: 34.9mm Alloy

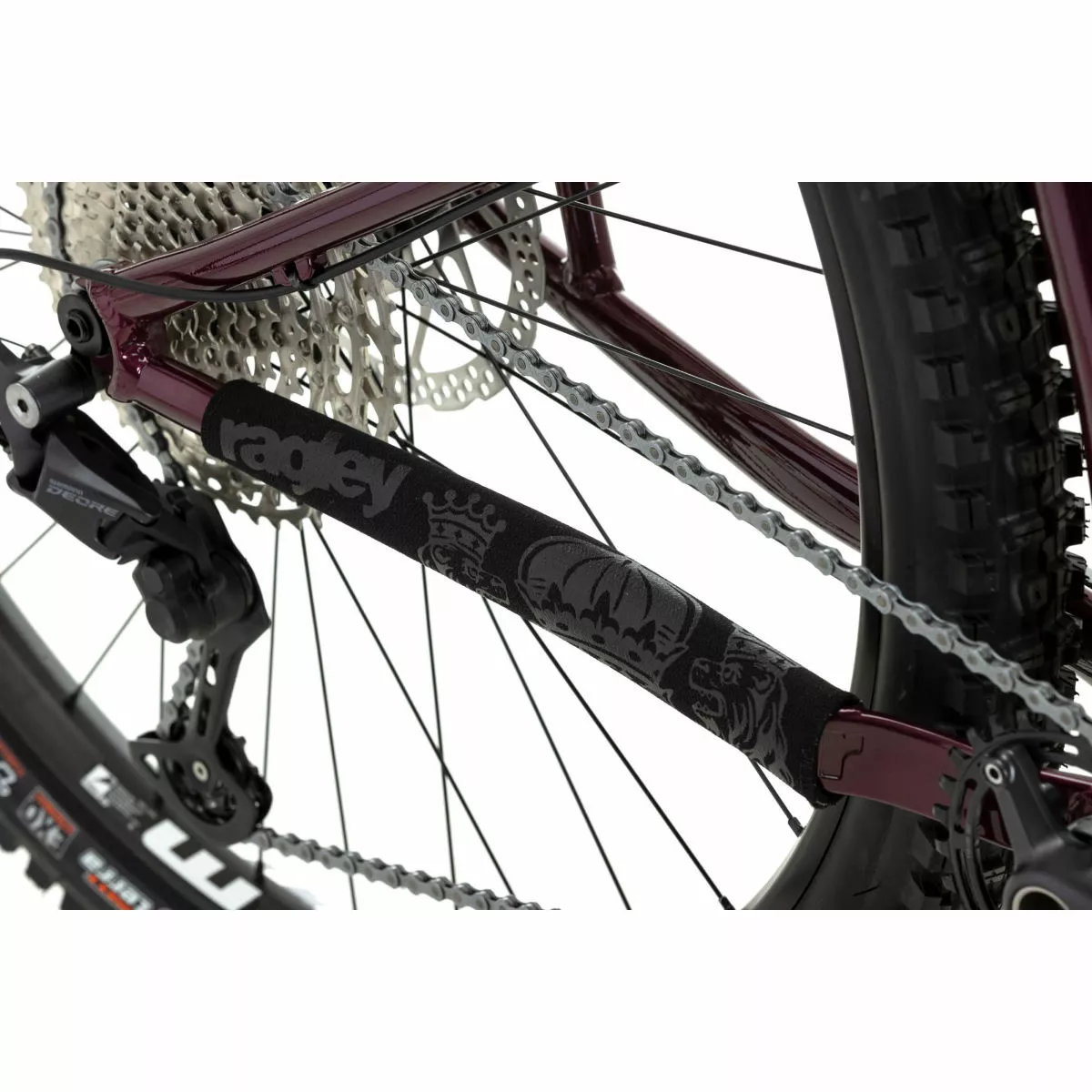

Also included: Ragley Chainstay protector
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
